Ball screws are essential components in many precision machinery and automation systems, Ball screws are super high precision, preloaded ball bearings running on a helical raceway. Ball screws is made of the ball screw and ball nut, it plays a crucial role in ensuring smooth and efficient motion across various industrial applications. Numerous high-performance systems utilize these components within different industries. Like aerospace, medical, semiconductor, electronics, automotive, and industrial automation sectors all leverage ball screws for their efficiency and accuracy.
However, ball screws require proper maintenance to extend their long lifespan, so that it can keep the good working performance. To ensure maximum reliability and performance, regular maintenance of ball screw assemblies is essential. Best tips include:
1. Lubrication: Use manufacturer-recommended lubricants to minimize wear and prevent corrosion. Automatic lubrication systems can further extend service intervals.Frequency depends on load, speed, and environment, but regular lubrication is essential.
2. Contamination Control: Install wipers, seals, or bellows to prevent ingress of dust, chips, or fluids, especially in harsh industrial or manufacturing environments.
3. Inspection and Adjustment: Periodically check for signs of wear, abnormal noise, or increased backlash. Adjust preload or replace worn components as needed.
4. Proper Installation: install the ball screw and nut based on the manufacturer instruction. Ball screws are easily damaged when installed. To help prevent damage, ensure accuracy, and prolong life, proper installation is required.
Stoarge the ball screw and ball screw nut
Keep the unit stored in a plastic sleeve in the original shipping container. Leave the ball screw assembly in the protective covering until the actual installation in the machine begins. Dirt, dust, or chips will settle on the assembly, and the wear process of the ball raceways will begin immediately upon operation of the machine. If stored for a long time, turn container over at three month intervals so protective oil will be distributed over the screw.
Troubleshooting
Misalignment is one of the most common problems. Evidence of misalignment can generally be detected by one of the following situations:
• Squealing noise caused by the balls sliding in one or more of the circuits.
• Roughness in the form of vibrations or slightly erratic operation. This can normally be detected by “feel” when placing your hand on the return circuits.
• Excessive heat at the ball nut. Any appreciable temperature above the ambient of adjacent components should be considered excessive. General Inspection of the Screw Shaft
Inspect the shaft ball grooves for signs of excessive wear, pitting, gouges, corrosion, or brinelling.

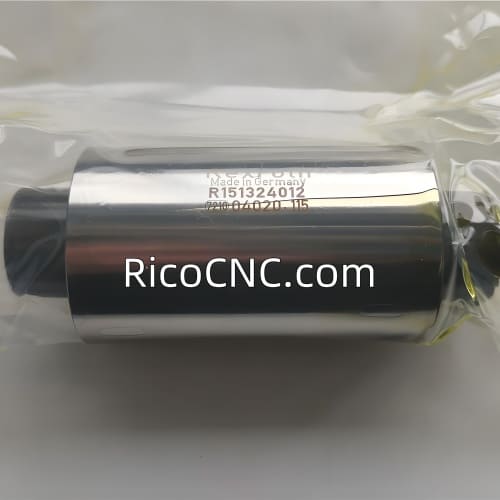

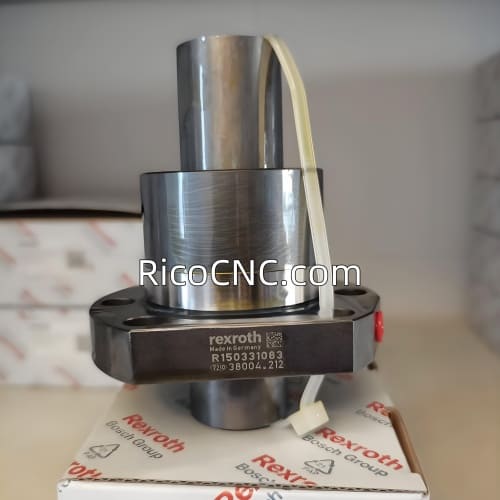

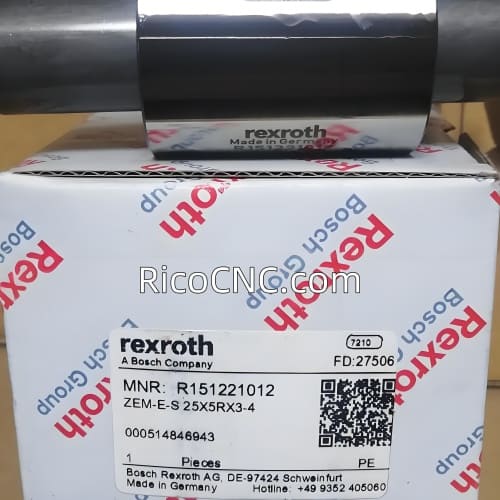

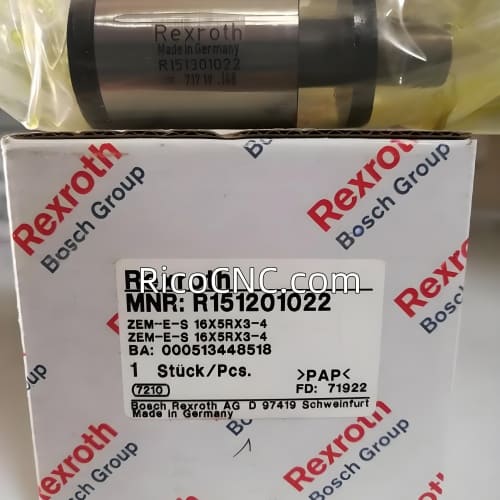

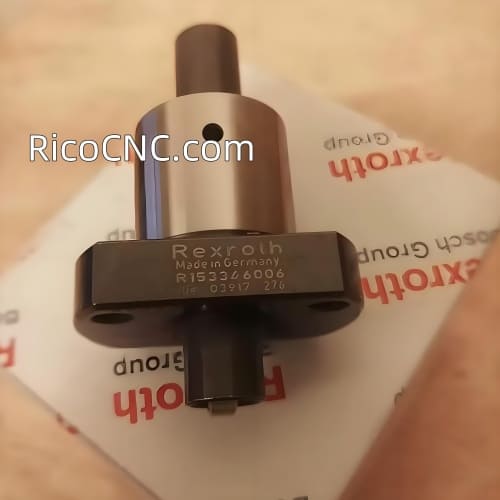

Ball screws deliver unparalleled precision, efficiency, and reliability for a wide range of linear motion and automation applications. RicoCNC can supply a wide varuous ball screw nut, like R151247013/R151347013 Bosch Rexroth Ball Screw Nut, R151324012/R151224012 Rexroth ball screw nut, R151328012 R151228012 Bosch Rexroth Ball Screw Assemblies Nuts, etc. if you need to know more information, please click here. or you can send us inquiry, we’ll try our best to service you. thanks.
