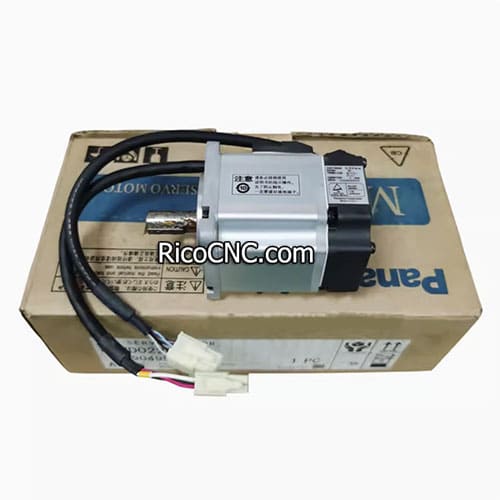

MSMD022P1S PANASONIC AC servo motor belongs to the MINAS A4 Family, also called industrial servo motor, high speed servo motor, it is one kind of low inertia, lead wire type, IP65, 3000 RPM 200W Incremental 200VAC, 0.64 Nm, a key shaft, without holding brake and oil seal.
Specification of MSMD022P1S PANASONIC AC servo motor:
Item | Specifications |
Brand | Panasonic |
Name | Servo Motor |
Part Number | MSMD022P1S |
Voltage specifications (V) | 200 |
Rated output (W) | 200 |
Rated torque (N ⋅ m) | 0.64 |
Momentary Max. peak torque (N ⋅ m) | 1.91 |
Max. current (A (o-p)) | 6.9 |
Rated rotational speed (r/min) | 3000 |
Details | Low inertia, Lead wire type, IP65 |
Family Name | MINAS A4 Family |
Series | MSMD Series |
Type | Low inertia |
Protection class | IP65 |
Holding brake | without |
Oil seal | without |
Shaft | Key-way, Shaft end, Center tap |
Similar product:
MSMD022P1S
MSMD022P1U
MSMD022S1S
MSMD022S1U
MSMD022S1SA4
MSMD022S1TA4
MSMD021P1SA4
MSMD021P1TA4
MSMD021S1SA4
MSMD021S1TA4
MSMD011P1SA4
MSMD011P1TA4
Except for the servo motor, we also have a limit switch, pump, sensor, encoder, and PLC, welcome your inquiry.
