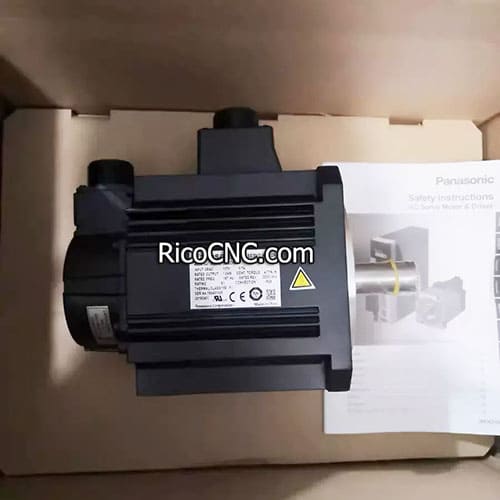

MDME102GCHM Panasonic AC Servo Motors

MDME102GCHM servo motor with holding brake and oil seal is produced by Panasonic, it belongs to the MDME Series,  MINAS A5 Family AC servo motor, middle inertia type industrial servo motor, 1000 W, 4.77N.m, 5.7A, IP65 protection class.

Specification of Panasonic MDME102GCHM AC servo motors:

Brand: Panasonic

Product: Servo Motor

Model: MDME102GCHM

Product name: MINAS A5 Family Servo Motor (Discontinued)

Family Name MINAS A5

Series: MDME Series

Type: Middle inertia

Protection class: IP65

Power supply capacity (kVA): 1.8

Voltage specifications (V): 200

Rated output (W): 1000

Rated current (A (rms)): 5.7

Shaft: Key-way

Rated torque (N.m): 4.77

Momentary Max. Peak torque (N. m): 14.3

Panasonic Servo Motor MINAS A5 also has the below model:

MDME102GCGM+MDDKT3530CA1, MDME102GCGM+MDDKT3530E,

MDME102GCHM+MDDKT3530CA1, MDME102GCHM+MDDKT3530E,

MDME152GCGM+MDDKT5540CA1, MDME152GCGM+MDDKT5540E,

MDME152GCHM+MDDKT5540CA1, MDME152GCHM+MDDKT5540E,

MDME202GCGM+MEDKT7364CA1, MDME202GCGM+MEDKT7364E,

MDME202GCHM+MEDKT7364CA1, MDME202GCHM+MEDKT7364E,

MDME302GCGM+MFDKTA390CA1, MDME302GCGM+MFDKTA390E,

MDME302GCHM+MFDKTA390CA1, MDME302GCHM+MFDKTA390E,

MDME402GCGM+MFDKTB3A2CA1, MDME402GCGM+MFDKTB3A2E,

MDME402GCHM+MFDKTB3A2CA1, MDME402GCHM+MFDKTB3A2E,

MDME502GCGM+MFDKTB3A2CA1, MDME502GCGM+MFDKTB3A2E,

MDME502GCHM+MFDKTB3A2CA1, MDME502GCHM+MFDKTB3A2E.

RicoCNC also supplies various brand servomotors, likeMitsubishi, YASKAWA, Schneider, and SANYO, welcome your inquiry.
