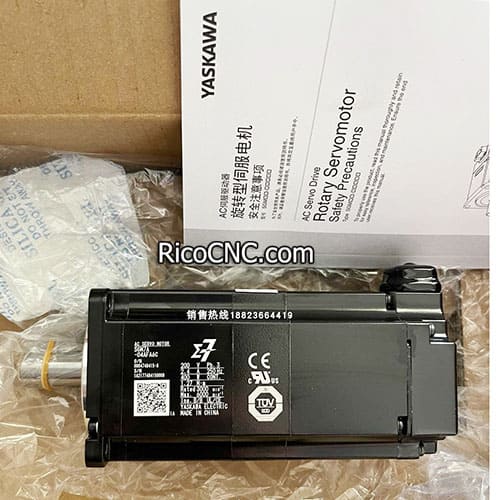

SGM7A-04AFA6C Yaskawa AC Brushless Rotary Servo Motors

Yaskawa SGM7A-04AFA6C AC Servo motor, belongs to SIGMA7, Σ7, Sigma-7, also called brushless servo motor, rotary servo motor, Low inertia, high speed servo motor, Yaskawa servo motor; 400W, 200V 1.27NM 3000RPM, 24-bit incremental encoder, it has holding brake. The flange is compatible with Sigma-5.

Feature of Yaskawa SGM7A-04AFA6C AC servo motors:

Downsizing by up to 20%

Flange compatible with Sigma-5

24-bit high-resolution encoder installed

Low inertia, high speed

Specification of SGM7A-04AFA6C AC servo motor:

Brand: Yaskawa

Rated output: 0.4 kW

Shaft end: Straight with key and tap

Input power supply: 200 V

Options: Withholding brake (24 VDC)

Rated torque: 1.27 Nm

Rated Motor Speed: 3000 1/min

Maximum motor speed: 6000 1/min

Encoder resolution: 24-bit

Encoder type: Incremental

We also supply:

SGMJV-08AAA6C YASKAWA Rotary Brushless AC Servo Motor;

SGMJV-04ADD6S YASKAWA AC Rotary Brushless Servo Motor;

SGMJV-01A3A6S YASKAWA Rotary Brushless AC Servo Motor;

SGMAV-02A3A2S YASKAWA AC Servo Motor;

SGMJV-08ADA21  YASKAWA AC Servo Motor.

If you need them, please feel free to contact us.
