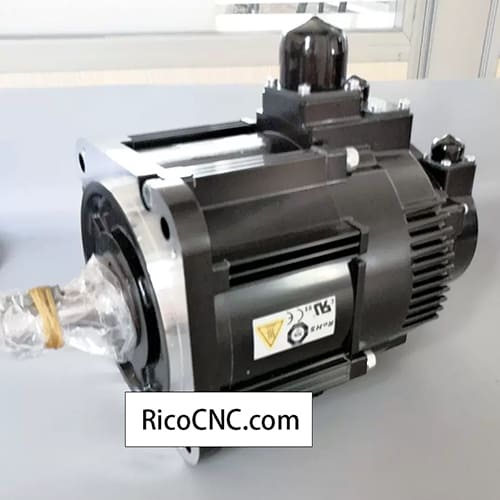

SGMGV-13A3C6C YASKAWA AC Servo Motor SGMGV Rotary Brushless Servomotor

Yaskawa SGMGV-13A3C6C AC servo motor is without gears but with a holding brake, SGMGV13A3C6C is a low inertia, medium capacity servo motor, it belongs to Σ-V, SGMGV, Sigma-V, SIGMA5 series Servomotor, also called rotary servo motor, brushless servomotor, 1300W, 200VAC, 20-bit absolute encoder, Straight with key and tap shaft end. : Counterclockwise (CCW) with forward run reference when viewed from the load side.

Feature of Yaskawa SGMGV-13A3C6C AC servo motor

Withholding brake

Protective structure: IP67

Low Inertia, Medium capacity

Mounted serial encoder: 20 bits, high resolution

Specification of SGMGV-13A3C6C Yaskawa AC servo motor

Brand: Yaskawa

Name: AC servo motor

Servomotor Model: SGMGV-13A3C6C

Rated Output (W): 1300

Rated Torque (N•m): 8.34

Rated Current(Arms): 10.7

Rated Speed: 1500 rpm

Max. Speed: 3000 rpm

We supply a wide range of industrial spare parts, like encoders, sensors, limit switches, and other products, and welcome your inquiry with your needs.
