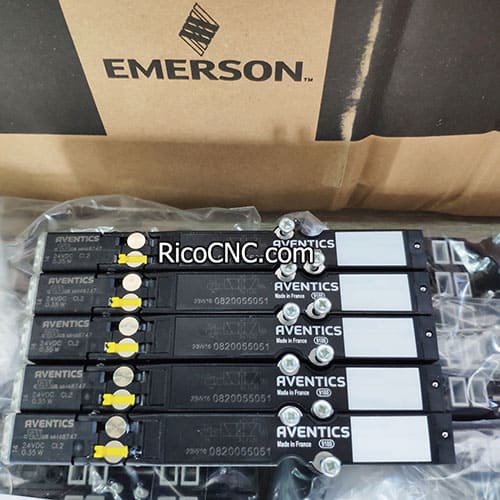

0820055051 BOSCH AVENTICS Solenoid Valve Series HF03-LG Directional Valve

0820055051 BOSCH AVENTICS Solenoid Valve Series HF03-LG Directional Valve


• 0820055051 AVENTICS

• Aventics 5 way 2 position Pneumatic Directional Valve

• HF03 - 5/2SR - 024DC

• Series HF03-LG 5 Port 2 Position Directional Control Valve

• AVENTICS 5/2-directional valve

• EMERSON-AVENTICS Single solenoid

• AVENTICS 5/2 directional valve

• External Pilot Spool Valve

BOSCH AVENTICS 0820055051 Solenoid Valve is Manufactured by BOSCH AVENTICS, belongs to Series HF03 - 5/2SR - 024DC, also called 5 way 2 position pneumatic valve, 5 Port 2 position directional control valve, Single solenoid, 5/2-directional valve, externa pilot spool valve, 5/2, 24V DC, -0.9-10 BAR, Series HF03-LG directional valve.


Specification of AVENTICS 0820055051 pneumatic directional valve:

Activation: Electrically

Switching principle: 5/2, with spring return

Actuating control: Single Solenoid

Manual override: with detent

Pilot: External

Nominal flow: Qn850 l/min

Min. working pressure: -0.9 bar

Max. working pressure: 10 bar

Operational↩voltage: 24 V DC

Voltage tolerance DC: -15% / +20%

Protection class with connection: IP65

Reverse polarity protection: Protected against polarity reversal

Sealing principle: 16 mm, Soft seal

Power consumption DC: 0.35 W

Duty cycle: 100 %

Typ. switch-on time: 16 ms

Typ. switch-off time: 23 ms

Also, we supply:

0820022002 Bosch Aventics Pneumatic Solenoid Valve

0820022990 BOSCH AVENTICS Solenoid Valves

0820060026 Rexroth Pneumatic Solenoid Valve

0820060126 Bosch Rexroth Pneumatic Directional Valve

We are looking forward to your email.
