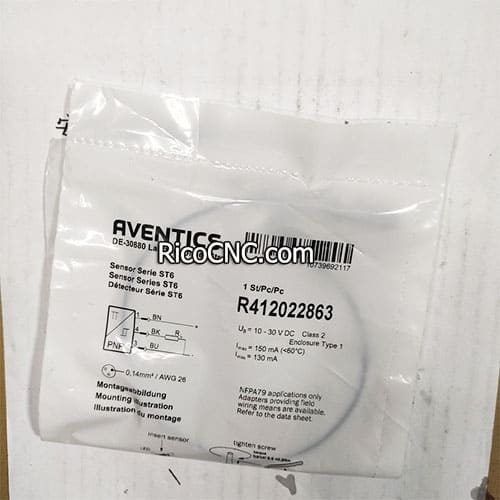

R412022863 AVENTICS ST6 Series Magnetic Proximity Sensors

Aventics R412022863 Magnetic Proximity Sensors is Manufactured by BOSCH AVENTICS, belongs to Series ST6, 6mm T-Slot Sensor M12 3-Pin 0.3m ST6-PN-M12R-030, also called Magnetic Proximity Sensors, Inductive Proximity Sensors, PNP Electronic Switch, Proximity Switch, 0.3M Cable and Plug, M12, 3-Pin, with Knurled Screw.

Features of AVENTICS R412022863 Magnetic Proximity Sensors:

Wide range of versions with different line lengths and connections

High and low temperature versions are available

Universal sensors for the standardized 6 mm nut

Mounting from above in the nut (“drop-in” mounting)

Combined mounting screw with hexagon socket and slotted screw

ATEX versions available

Specifications of AVENTICS R412022863 Magnetic Proximity Sensors:

Manufacturer: Aventics

Manufacturer Part Number: R412022863

Direct mounting for series: PRA, PRE, CCI, KPZ, SSI, GPC, CVI

Indirect mounting for series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR

Slot width: 6 mm T-slot

Cable: with cable

Type of contact: electronic PNP

Nominal current, actuated state: < 30 mA

Quiescent current (without load): < 8 mA

Hysteresis: ≥ 0,2 mT

Voltage drop U at Imax: ≤ 2,5 V

DC switching current, max.: 0.13 A

Max. switching frequency: 1000 Hz

Switching point precision: ±0,1 mT

Switching logic: NO (make contact)

LED status display: Yellow

Electrical connection 2, type: Plug, M12x1

Electrical connection 2, number of poles: 3-pin

Operating voltage DC, min.: 10 V DC

Operating voltage DC, max.: 30 V DC

Short circuit resistance: short circuit resistant, Protected against polarity reversal

Shock resistance: 30 g / 11 ms
