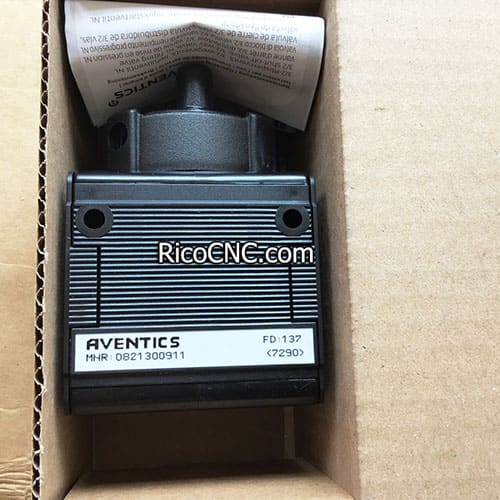

0821300911 AVENTICS Pneumatic Dump Valve Series NL4-BAV 3 2-shut-off valve

Aventics 0821300911 SHUT-OFF VALVE, also called 3/2-shut-off valve, NL4 G1/2 NL4-SOV-G012-SOM-MAN-SS, mechanically operated, Series NL4-BAV, 11000 l/min, 0-16 bar.

Specifications of AVENTICS 0821300911 3/2-shut-off valve

Activation: Mechanical

Nominal flow Qn: 11000 l/min

Compressed air connection: G 1/2

Working pressure min.: 0 bar

Working pressure max: 16 bar

Actuating element: rotary switch

Sealing principle: metal/metal sealing

Type: Ball Valve

Parts: Shut-off valve

Lock Type: lockable

Lock type: for padlocks

Medium: Compressed air, Neutral gases

Compressed air connection, exhaust: G 1/2

Nominal flow Qn 1 to 2: 11000 l/min

Nominal flow Qn 2 to 3: 110 l/min

Housing material: Die-cast zinc

Seal material: Acrylonitrile butadiene rubber

Material, front cover: Acrylonitrile butadiene styrene

Material actuating control: Polyoxymethylene

Also, we supply:

4KB219-00 CKD 24VDC 2 Position 5 Port Pneumatic Solenoid Valve

R412007184 AVENTICS Filter Pressure Regulator

5794970220 Aventics Solenoid Valve

R412007186 Aventics Pneumatic Filter

Welcome your inquiry.
