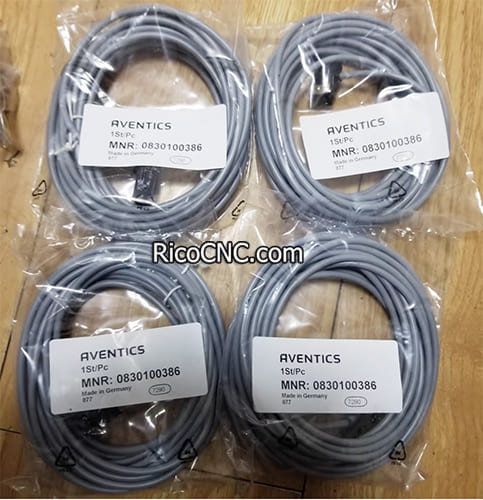

AVENTICS Sensor Series ST9 0830100386 Aventics Reed Switch ST9-PN-K05V-036

Aventics 0830100386 (ST9-PN-K05V-036) Sensor is manufactured by BOSCH AVENTICS, Serie ST9, BOSCH 0-830-100-386 cylinder switch, Aventics reed switch, Sensor for actuator KHZ (Mini) Schwalb (0830100386). the sensor has with stretched impulse, 2000Hz, cable length 5m.

Specifications AVENTICS Sensor, Series ST9 0830100386

Direct mounting for series: KHZ

Slot width: 9 mm groove

Sensor: With stretched impulse

Cable: with cable

Type of contact: electronic PNP

Nominal current, actuated state: < 7 mA

Quiescent current (without load): < 3 mA

Protection class: IP67, IP65

Min. ambient temperature: -10 °C

Max. ambient temperature: 70 °C

Voltage drop U at Imax: ≤ 2,0 V

DC switching current, max.: 0.2 A

Max. switching frequency: 2000 Hz

Switching point precision: ±0,1 mT

LED status display: Yellow

Electrical connection 2, type: without wire end ferrule, tin-plated

Electrical connection 2, number of poles: 3-pin

Operating voltage DC, min.: 12 V DC

Operating voltage DC, max.: 36 V DC

Short circuit resistance: short circuit resistant, Protected against polarity reversal

Shock resistance: 100 g / 11 ms

Vibration resistance: 60 g (50 ... 2000 Hz)

Cable length L5 m

Housing material: epoxy resin

Material cable sheath: Polyvinyl chloride
