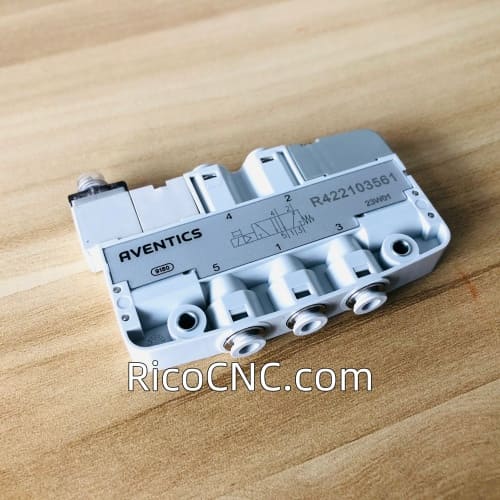

R422103561 AVENTICS Pneumatic Valve Directional Valve Series LS04 Single Solenoid Valve Spool Valve

AVENTICS R422103561 Directional Valve also called single solenoid Valve Spool Valve,

These are Aventics pneumatic valves used on the Homag machine. 5/2-directional valve, Series LS04-AF, 5/2, 24V DC, 1.3W 4mm Tube Connection, 3-7 Max BAR, Series LS04-AF Directional Valve (LS04-5/2SR-024DC-AF-I-M8-D4-NEW)

Specifications of R422103561 AVENTICS Directional Valve:

ActivationElectrically

Nominal flow Qn180 l/min

Switching principle5/2

Compressed air connection outputØ 4

Working pressure min.3 bar

Working pressure max7 bar

DC operating voltage24 V

Voltage tolerance DC-10% / +10%

Manual override without detent

Electrical connection type plug

Electrical connection sizeM8

Electrical connection number of poles3-pin

Actuating control single Solenoid

Sealing principles of Seal

PilotInternal

Valve typeSpool valve, positive overlapping

Connection type pipe connection

ReturnWith spring return

MediumCompressed air

Max. particle size5 µm
