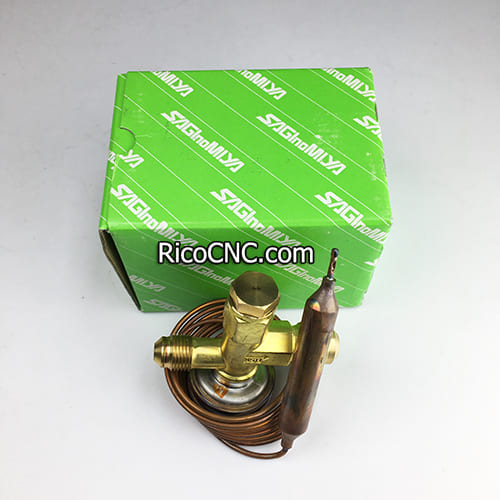

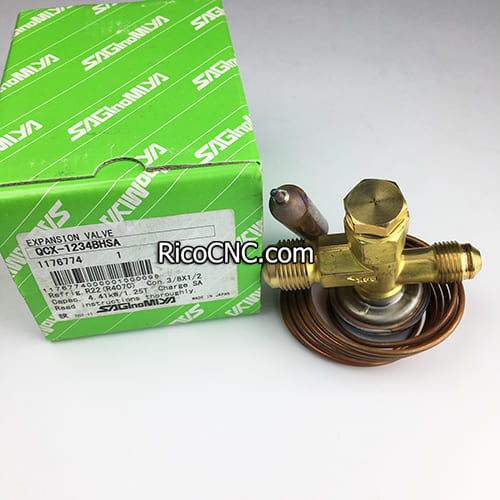

QCX-1234BHSA Saginomiya Thermostatic Expansion Valve QCX Series

Saginomiya QCX-1234BHSA expansion valve is manufactured in Japan and belongs to the QCX series Thermostatic Expansion Valve, used in commercial refrigerators, freezers, air conditioners, cold chain boxes, etc. 4.41KW/1.25T, charge SA, can be used for R22 and R407C.

Feature of Saginomiya QCX-1234BHSA expansion valve

•Application: Commercial refrigerator, freezer, air conditioner, cold chain box, etc.

•Suitable for refrigeration systems with hot gas defrosting.

•Type QCX ... Internal equalizer type Type RCX ... External equalizer type

•The same products can be used for R22 and R407C.

•With superheat external adjust device.

Specification of Saginomiya QCX-1234BHSA expansion valve

Country of original: Japan

Type: QCX

Max. working pressure: 3.0 MPa {30kgf/cm2 }

Adjustable range of static superheat: 1 to 7°C at R22, R134a, R404A 1 to 5°C at R407C, R410A

Increase about 0.045MPa / rotation

Superheat change: 4 to 5°C (C, SL–charge) 3 to 4°C (SA–charge)

Capacity:4.41KW/ 1.25T

Pipe diameter:34

Joint: Hornpipe joint

Refrigerant type: R22(R407C)

Filling method: SA Filling

SAGINOMIYA thermal expansion valve. Many times was used for shipping cold rooms.

QCX series

QCX0334BHC,QCX-0534BHC,QCX-0834BHC,QCX-1234BHC,OCX-1634BHCOCX-2434BHC,OCX-3134BHC.OCX4734BHC

(R404A Refrigeration)

QCX-0234BUC,QCX-0334BUC,QCX-0534BUC,QCX-0834BUC,QCX-1034BUC,QCX-1534BUC,QCX-2034BUC,QCX-3034BUC

(R134a Refrigeration)

QCX-0234BMC,QCX 0434BMC.QCX-0634BMC,OCX-1034BMC,QCX-1234BMC.OCX-1834BMC,OCX-2434BMC,OCX-3634BMC
