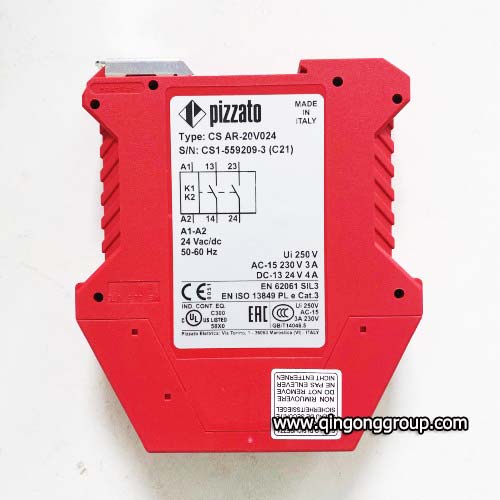

CS AR-20V024 Pizzato Safety Relay 2NO DIN Rail Mounting

CS AR-20V024 Pizzato Safety Relay 2NO DIN Rail Mounting

This is original Pizzato CS AR-20V024 safety relay, 24V AC, 24V DC, DIN rail mounting.

CS AR-20V024 Relay Specification

Manufacturer: PIZZATO ELETTRICA

Model: CS AR-20V024

Type of module: safety relay

Mounting: for DIN rail mounting

Manufacturer series: CS

Operating temperature: -25...55°C

Electrical connection: screw terminals

Safety category: 2

Safety outputs: NO x2

Supply voltage: 24V AC, 24V DC

CS AR-20V024 Relay Features

• For safety applications up to SIL CL 3/PL e

• Input with 1 or 2 channels

• Choice between automatic start, manual start or monitored start

• Connection of input channels of opposite potentials

• Reduced housing width of 22.5 mm

• Output contacts: 2 NO safety contacts | 1 NC auxiliary contact

• Supply voltages: 10 - 30 VDC, 24 VAC/DC. 120 VAC, 230 VAC
