EDS 810-0060-0-224 Hydac Pressure Switch Doosan R37983

EDS 810-0060-0-224 Hydac Pressure Switch Doosan R37983


• Hydac 810-0060-0-224 Sensor

• Hydac Electronic Pressure Switch EDS 810

• EDS 810 Electronic Pressure Switch for Doosan CNC

• EDS 810 for Doosan CNC machine

• ETAPS0178 switch

• Doosan: R37983

• Pressure Switch Type EDS 810

• EDS 810 – Fixed, high pressure, relative, OEM (industry, mobile)

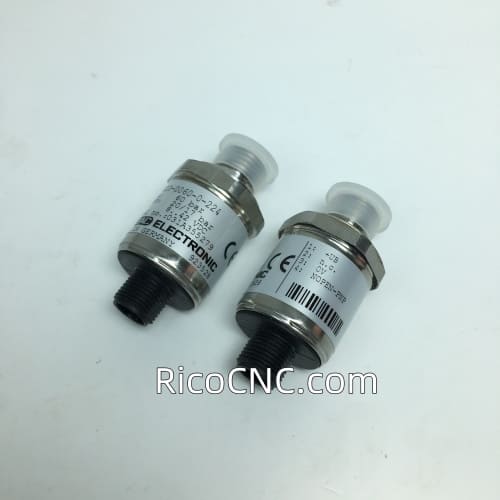

EDS 810 for Doosan CNC machine.jpg

EDS 810-0060-0-224 Hydac Pressure Switch, HYDAC Electronic Pressure Switch Type EDS 810, EDS 810 for Doosan CNC machine, Range bar 60, Doosan: R37983, Rance: 60 bar, SP/RSP: 20/17 bar.

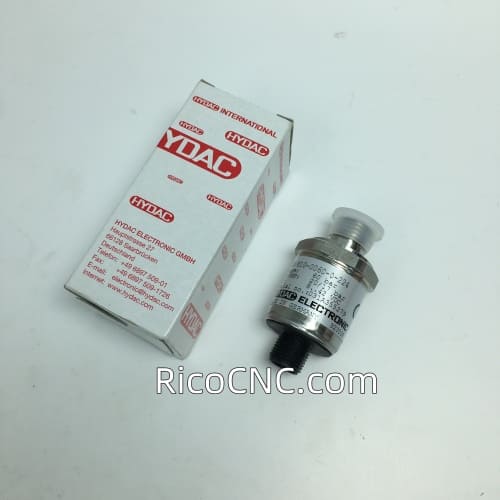

EDS 810-0060-0-224.jpg

Feature of EDS 810-0060-0-224 Hydac Pressure Switch:

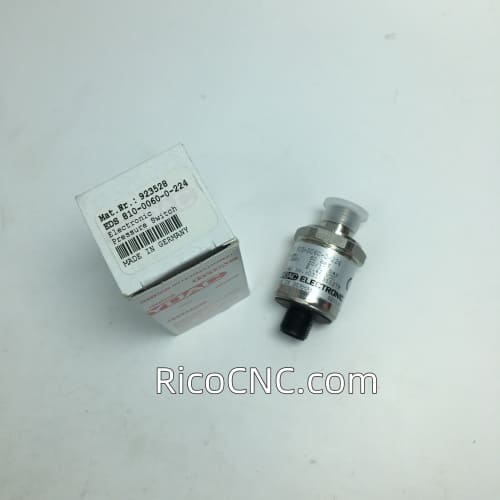

ETAPS0178 switch.jpg

The electronic pressure switch EDS 810 serves for use in volume production machines.

This highly compact instrument possesses a very robust pressure sensor with thin-film strain gauge on a stainless steel membrane. What's more, the transistor switching output is available with either N/C or N/O function.

In addition, the switching and switch-back point of the EDS 810 are factory-set according to customer specification (not field-adjustable).

Furthermore, various pressure ranges between 0.. 40 bar and 0 .. 600 bar are available.

Specification of EDS 810-0060-0-224 Hydac Pressure Switch

Stainless steel measuring sensor, thin-film strain gauge

High pressure 40 bar...600 bar, relative

Short design, A/F width 27

1 or 2 fixed transistor outputs PNP or NPN

Switching accuracy: ± 0.5% FS type

Switching current: 500 mA

Options: Connector or cable output

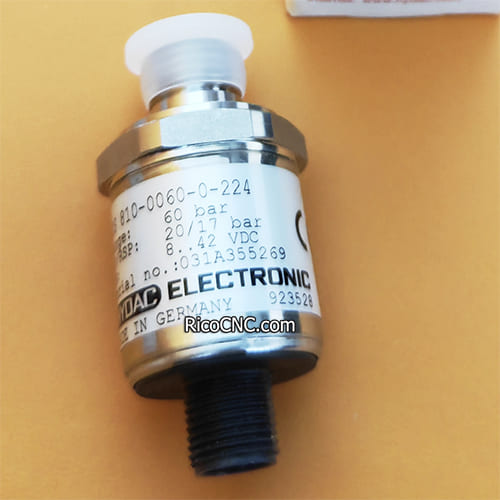

Hydac 810-0060-0-224 Sensor.jpg

Also we can supply:

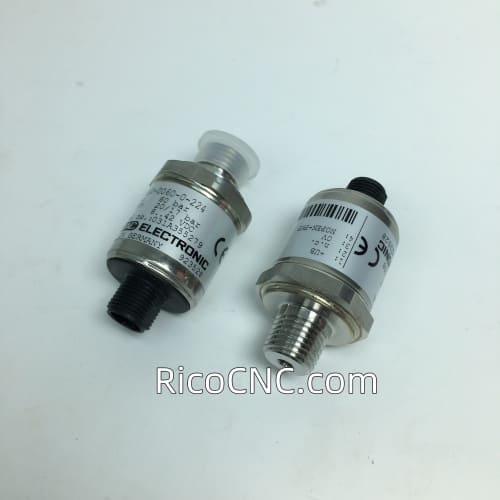

Hydac Electronic Pressure Switch EDS 810.jpg

VF B502 Pizzato Limit Switches

VF B501 PIZZATO Position Switches

Welcome your inquiry.
