R414000776 AVENTICSPneumatic Regulator ED07-000-160-420-2M12B

R414000776 AVENTICSPneumatic Regulator ED07-000-160-420-2M12B

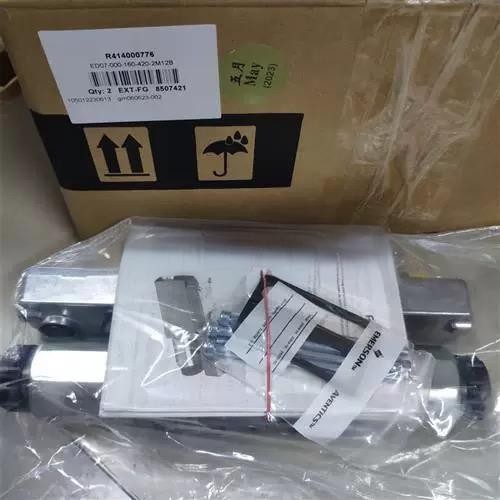

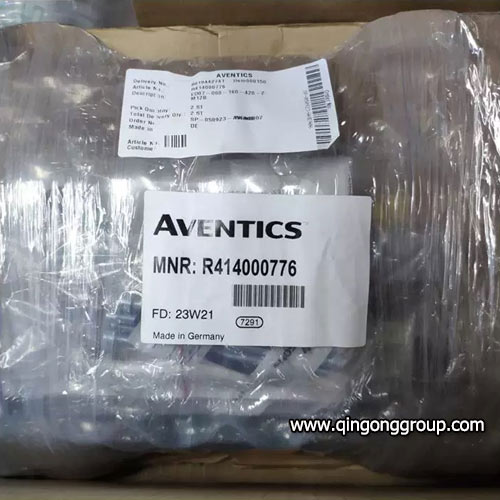

This is brand new AVENTICS R414000776 pneumatic valves, ED07-000-160-420-2M12B pressure regulator.

R414000776 Valves Specifications

Control: Directly controlled

Regulation range min.: 0 bar

Regulation range max.: 16 bar

Working pressure min.: 0.5 bar

Working pressure max: 18 bar

Hysteresis: 0,04 bar

Medium: Compressed air

Nominal flow Qn: 1300 l/min

DC operating voltage: 24 V

Max. current consumption: 1400 mA

Type: Poppet valve

Electrical connection type: Plug

Electrical connection size: M12

Electrical connection number of poles: 5-pin

Signal connection: input and output

Besides, we also have the models: R414000778, 561021105.

We supply all kinds of CNC motors and drives, limit switch, solenoid Valve, sensor, encoder, gear box reducer and PLC module.

Please feel free to contact us if any needs.
