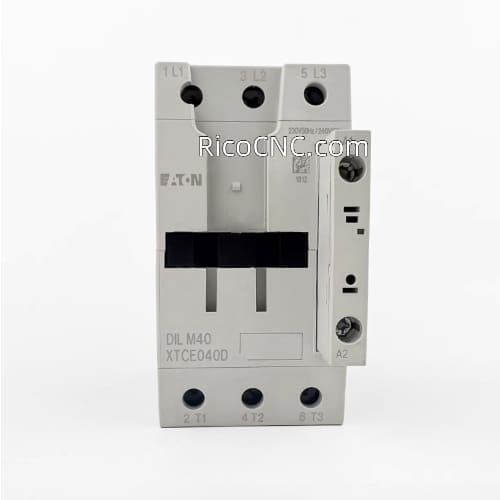

DILM40 XTCE040D (277766) Eaton Contactor 3 Pole Contactors

DILM40(230V50HZ,240V60HZ),3 pole, 380 V 400 V 18.5 kW, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals

The Eaton XTCE040D / DILM40 is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 15 HP at 230V and 30 HP at 460V. Conforms to IEC 60947

Specification of DILM40 XTCE040D (277766) Eaton Contactor:

Part no.: DILM40 XTCE040D

art. 277766

Number of poles: 3

Rated current: 40A

Control voltage type: 230-240V AC

Type of terminals: screw

Rated power: 18.5kW

Conditional thermal current for open installation: 50A

Voltage type: AC

Main contacts: 3NO

Additional contacts: 1NO

Height: 132 mm

Width: 55 mm

Depth: 115 mm

EAN: 4015082777661

Terminals: Screw terminals
