0821300761 AVENTICS Filter Pressure Regulator NL1-FRE Air Preparation

0821300761 AVENTICS Filter Pressure Regulator NL1-FRE Air Preparation

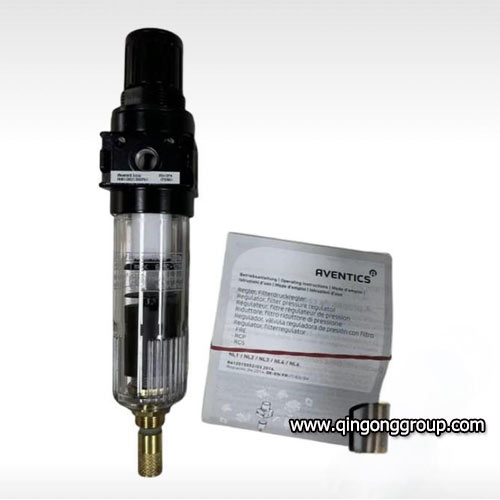

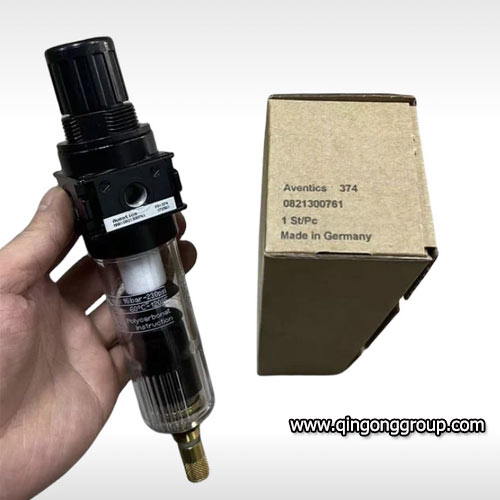

This is brand new AVENTICS 0821300761 filter pressure regulator, NL1-FRE-G014-GAN-100-PNB-AO-05,00 air preparation.

0821300761 Air Preparation Specifications

Port: G 1/4

Nominal flow Qn: 1350 l/min

Filter porosity: 5 µm

Condensate drain: fully automatic, open without pressure

Pressure gauge: without pressure gauge

Working pressure min.: 1.5 bar

Working pressure max: 16 bar

Regulation range min.: 0.5 bar

Regulation range max.: 10 bar

Type: 1-part

Type: Can be assembled into blocks

Pressure supply: single

Mounting orientation: vertical

Regulator type: Diaphragm-type pressure regulator

Regulator function: with relieving air exhaust

Filter element: exchangeable

Filter reservoir volume: 16 cm³

We supply all kinds of CNC motors and drives, limit switch, solenoid Valve, sensor, encoder, gear box reducer and PLC module.

Please feel free to contact us if any needs.
