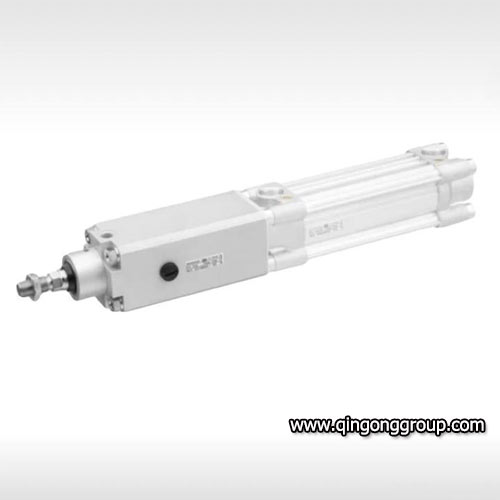

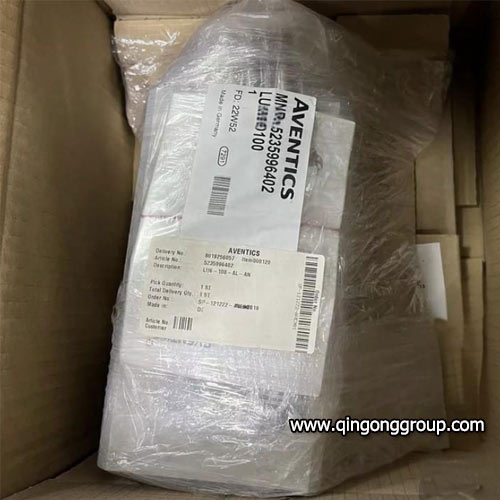

5235996402 Locking Unit AVENTICS Valve Lock Out LU6-100-AL-AN

5235996402 Locking Unit AVENTICS Valve Lock Out LU6-100-AL-AN

This is brand new 5235996402 locking unit AVENTICS valve lock out LU6-100-AL-AN.

5235996402 Locking Unit Specifications

Function: Static holding, Dynamic braking

Type: Clamping jaw lock

Piston Ø: 100 mm

Piston diameter: 100 mm

suitable piston rod Ø: 25 mm

Piston rod extension: 220 mm

Compressed air connection: G 1/8

Max. piston speed v max.: 1 m/s

Release pressure min.: 4 bar

Release pressure max.: 10 bar

Medium: Compressed air

Max. particle size: 5 µm

Required flow rate Qn: 700 l/min

Besides, we also have the models: R412010426 and 5236996402.

We supply all kinds of CNC motors and drives, limit switch, solenoid Valve, sensor, encoder, gear box reducer and PLC module.

Please feel free to contact us if any needs.
