5792600220 AVENTICS 3/2-directional valve V579-3/2NC-DA08-024DC-04-RV4

5792600220 AVENTICS 3/2-directional valve V579-3/2NC-DA08-024DC-04-RV4

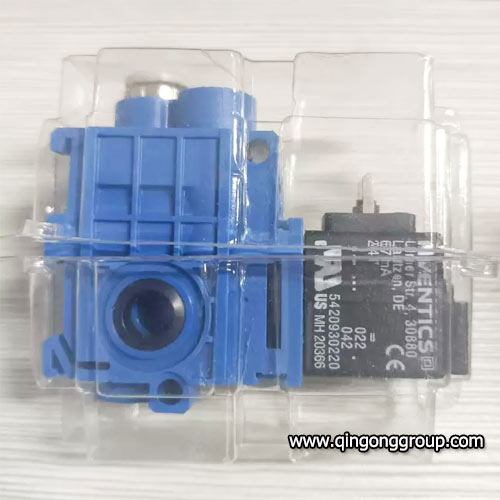

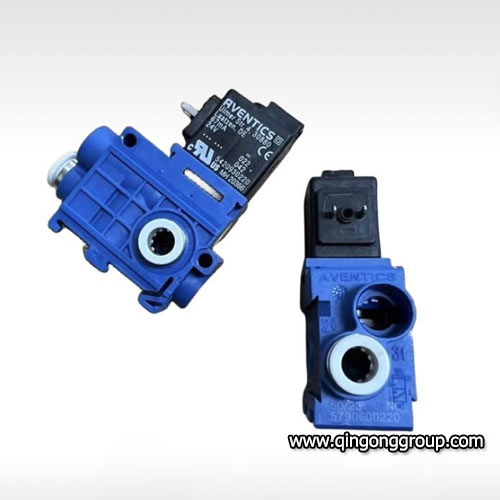

This is brand new 5792600220 AVENTICS 3/2-directional valve, V579-3/2NC-DA08-024DC-04-RV4.

5792600220 Valves Specifications

Activation: Electrically

Nominal flow Qn: 850 l/min

Switching principle: 3/2

Version: NC

Compressed air connection output: Ø 8x1

Working pressure min.: 2 bar

Working pressure max: 8 bar

DC operating voltage: 24 V

Manual override: with detent

Electrical connection type: Plug

Sealing principle: Soft Seal

Pilot: Internal

Valve type: Poppet valve

Connection type: Pipe connection

Return: With spring return

Blocking principle: End valve

Medium: Compressed air

Max. particle size: 5 µm

Besides, we also have the following model:

5792600220 (V579-3/2NC-DA08-024DC-04-RV4)

5790600220 (V579-3/2NC-DA08-024DC-04-RV1)

5791500220 (V579-3/2NC-DA06-024DC-04-RV2)

5790069750

5790005312

5794600220 (V579-3/2NC-DA08-024DC-04-EV4)

5790800220 (V579-5/2OC-DA06-024DC-04-RV1)

5791600220 (V579-3/2NC-DA08-024DC-04-RV2)

5792500220 (V579-3/2NC-DA06-024DC-04-RV4)

5791510220 (V579-3/2NO-DA06-024DC-04-RV2)

We supply all kinds of CNC motors and drives, limit switch, solenoid Valve, sensor, encoder, gear box reducer and PLC module.

Please feel free to contact us if any needs.
