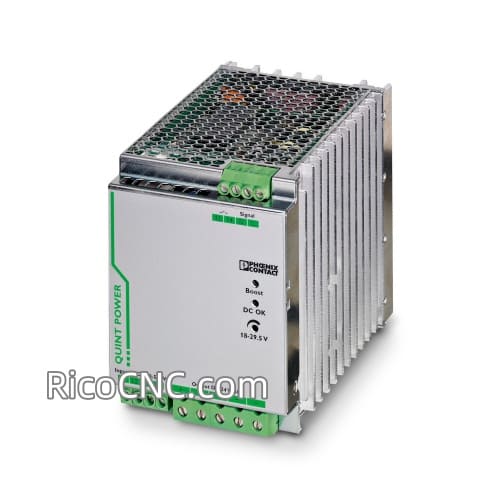

2866802 Phoenix Contact QUINT-PS/3AC/24DC/40 - Power supply unit

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 40 A

QUINT POWER power supplies with maximum functionality

QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection.

Specification of 2866802 QUINT-PS/3AC/24DC/40 - Power supply unit:

Item number: 2866802

Product key: CMPQ33

Nominal input voltage range: 3x 400 V AC ... 500 V AC

Input voltage range: 3x 400 V AC ... 500 V AC -20 % ... +15 %

Voltage type of supply voltage: AC/DC

Inrush current: < 15 A (at 25 °C)

Inrush current limitation: 15 A

AC frequency range: 45 Hz ... 65 Hz

Frequency range DC: 0 Hz

Nominal power consumption: 1342 VA

Protective circuit: Transient surge protection; Varistor, gas-filled surge arrester

Nominal input voltage range: 500 V DC ... 600 V DC

Input voltage range: 500 V DC ... 600 V DC -10 % ... +33 % (mid-point earthed)

Efficiency: typ. 94 % (400 V AC)

Output characteristic: U/I
