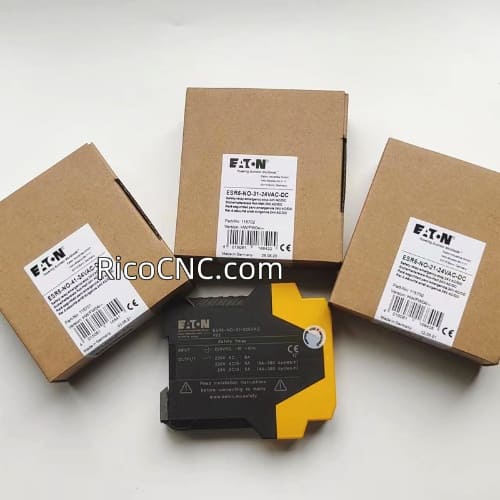

ESR5-NO-31-24VAC-DC Eaton Safety Relay ESR5 Emergency Stop Safety Relay

Eaton Electronic Safety Relays ESR5 Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 3 Safety Contacts, ESR5-NO-31-24VAC-DC Eaton Safety Relay can be used for emergency stop and safety door monitoring as well as in safety circuits according to EN 60204-1. Control is via a single channel or two channels, either with automatic or manual start circuit (PSR-ESM4 only).The ESR5 safety relay is compatible with a variety of safety devices such as emergency stops, rope pull switches, two hand control stations, light curtains (OSSD), gate enable devices and safety switches.

Features of ESR5-NO-31-24VAC-DC Eaton Safety Relay:

Emergency stop and safety door monitoring

Suitable up to category 4, PL e (EN ISO 13849-1), SILCL 3 (EN 62061)

Single-channel or two-channel wiring with cross-circuit detection

Automatic or manual start circuit

Screw terminal blocks for plug-in

Specification of ESR5-NO-31-24VAC-DC Eaton Safety Relay：

Relay type: Electromechanically forcibly guided, dust-proof relay

Nominal operating mode: 100 % operating factor

Degree of protection: IP20

Min. degree of protection of inst. location: IP54

Mounting type: DIN rail mounting

Type of housing: Polyamide PA non-reinforced yellow

Air and creepage distances between the power circuits: DIN EN 50178/VDE 0160

Rated insulation voltage: 250 V

Rated surge voltage / insulation: 4 kV (Safe isolation, increased insulation
