573482 VUVG-B14-M52-AZT-F-1T1L FESTO Pneumatic Solenoid Valves

573482 VUVG-B14-M52-AZT-F-1T1L FESTO Pneumatic Solenoid Valves


• Festo 5/2 Solenoid Valves

• Electrically and pneumatically actuated directional control valves

• Universal directional control valves

• VUVG Solenoid valve

• VUVG-B14-M52-AZT-F-1T1L

• VUVG-B14-M52-AZT-F-1T1L 573482

• Pneumatic Solenoid Valves

• Festo VUVG-B14-M52-AZT-F-1T1L (573482) Solenoid Valve

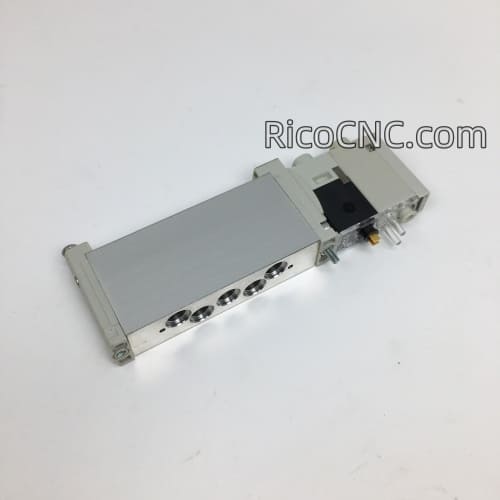

573482 VUVG-B14-M52-AZT-F-1T1L FESTO Pneumatic Solenoid Valves, Festo 5/2 Solenoid Valve - Electrical VUVG Series 24V dc, 573482.

Festo 5:2 Solenoid Valves.jpg

Specification of 573482 VUVG-B14-M52-AZT-F-1T1L FESTO Pneumatic Solenoid Valves

Valve function: 5/2-way, monostable

Standard nominal flow rate (standardised to DIN 1343): 500 l/min

pneumatic working port: Flange

Type of actuation: Electric

Valve size: 14 mm

Standard nominal flow rate (standardised to DIN 1343): 500 l/min

pneumatic working port: Flange

Operating voltage: 24V DC

Operating pressure: -0.09 MPa ... 1 MPa

Operating pressure: -0.9 bar ... 10 bar

Design: Piston gate valve

Type of reset: Pneumatic spring

Approval: c UL us - Recognized (OL)

Degree of protection: IP65/ IP67

Exhaust-air function: With flow control option

Sealing principle: Soft

Mounting position: optional

Manual override: Detenting Non-detenting

Type of piloting: Pilot actuated

Pilot air supply: External

Flow direction: Reversible

Symbol: 00991053

lap: Overlap

Signal status display: LED

Pilot pressure: 0.15 MPa ... 0.8 MPa

Pilot pressure: 1.5 bar ... 8 bar

Max. switching frequency: 3 Hz

Switching time off: 26 ms

Switching time on: 13 ms

Duty cycle: 100%

VUVG-B14-M52-AZT-F-1T1L 573482.jpg
