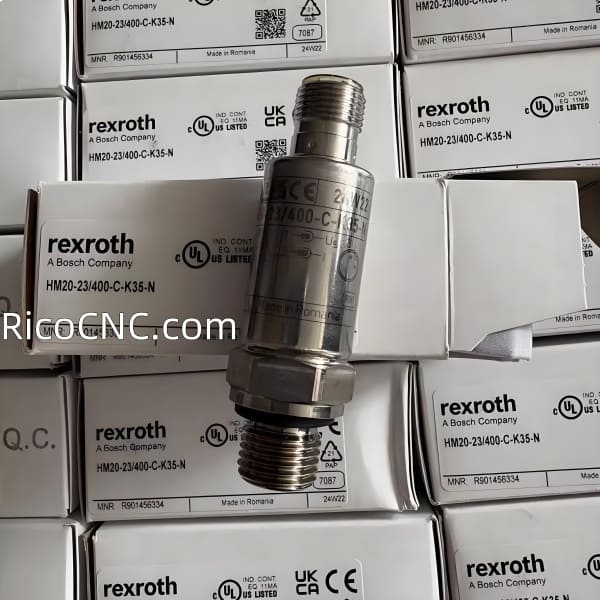

R901456334 Bosch Rexroth Pressure sensors PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N

R901456334 Bosch Rexroth Pressure sensors PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N, Pressure transducer with analog output 4 … 20 mA, pressure range 0 … 400 bar, connector 4-pole M12x1 A-coded, throttle element.

Feature of R901456334 Bosch Rexroth Pressure sensors PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N

Short signal rise time < 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of < 0.5% FS. Excellent overload and bursting behavior.

Thin film measuring cell

Output 4 ... 20 mA

Analog output: 4 … 20 mA

Hydraulic connection G1/4

Throttle element in the pressure tube

Throttle element in the pressure channel

Connector 4-pole, M12x1, A-coded

Specifications of R901456334 Bosch Rexroth Pressure sensors PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N

Manufacturer: Bosch Rexroth

Part number: R901456334

Component series 2X

Maximum operating pressure 630bar

Pressure ratings 10, 50, 100, 160, 250, 315, 400 and 630 bar

cULus-listed

Also we supply:

R901342034 Bosch Rexroth PRESSURE TRANSDUCER HM 20-2X/400-H-K35

R901342033 Bosch Rexroth PRESSURE TRANSDUCER HM 20-2X/400-C-K35

R901342030 Bosch Rexroth PRESSURE TRANSDUCER HM 20-2X/315-H-K35

R901342027 Bosch Rexroth PRESSURE TRANSDUCER HM 20-2X/250-H-K35

If you need them, Welcome your inquiry.
