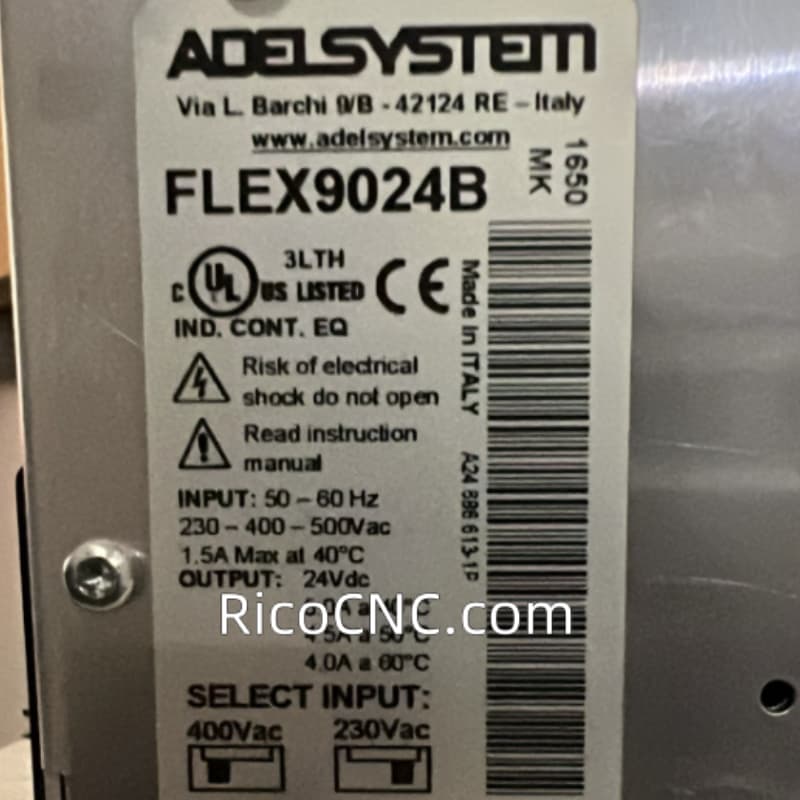

FLEX9024B ADELSYSTEM Power Supply Din Rail 120W 24V Input 380 VAC

FLEX9024B ADELSYSTEM Power Supply Din Rail 120W 24V Input 380 VAC.Power Supply In:230/400-500Vac Out:24V 5A; 2 Phase.

Manufacturer: ADELSYSTEM

Model: FLEX9024B

Description: Power Supply In:230/400-500Vac Out:24V 5A; 2 Phase

Nominal Input Voltage: 115 - 230 Vac

Input Voltage Range: 90 - 135 Vac/ 180 - 264 Vac

Inrush Current (Vn and In Load) I2t: ≤ 11 A ≤ 5msec

Frequency: 47 - 63 Hz ±6%

Input Current: 1.8 - 0.9A

Internal Fuse: 4A

External Fuse (recommended): 10A

Output Voltage Factory Setting ±3%: 24 Vdc

Adjustment range (Vadj): 22 - 27 Vdc

Start up with capacitive load: ≤ 50.000 µF

Turn-On delay after applying mains voltage: 1 sec. (max

Continuous Current at Vn < 40°C (In): 5.0 A

Continuous Current at Vn < 50°C (In): 4.5 A

Continuous Current at Vn < 60°C (In): 5.0 A

Power Boost Current (at Vn 60°C ≥ 3min.): 12 A
