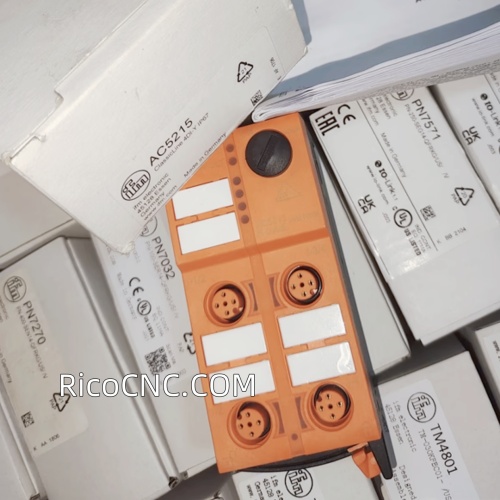

AC5215 IFM AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DI-Y IP67

AC5215 IFM AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DI-Y IP67, ASI MODULE WITH FAST MOUNTING TECHNOLOGY. 4 INPUTS WITH Y-CIRCUIT, EXTENDED ADDRESSING

Features of AC5215 AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DI-Y IP67

Easy toolless installation and wiring thanks to quick mounting technology

Three freely selectable directions of the flat cable

Clearly visible powerful LEDs for displaying operation, switching status and error

High protection rating for the requirements of harsh industrial environments

Robust M12 connectors for connecting sensors and actuators

Specification of AC5215 IFM AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DI-Y IP67

Design: housing for DIN rail mounting

Application: field installation

Operating voltage[V]: 26.5...31.6 DC

Max. current consumption from AS-i[mA]: 250

Number of inputs and outputs: Number of digital inputs: 4

Number of digital inputs: 4

Input circuit of digital inputs: PNP

Sensor supply of the inputs: AS-i

Power supply[V]: 18...30; (DC)

Max. total current rating of inputs[mA]: 200

Input current High[mA]: 6...10

Input current Low[mA]: 0...2

Switching level high[V] > 11
