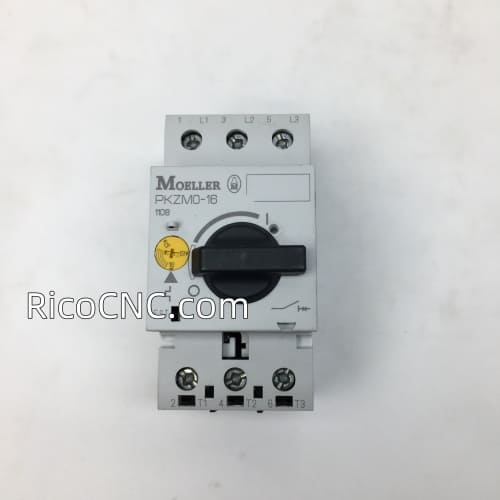

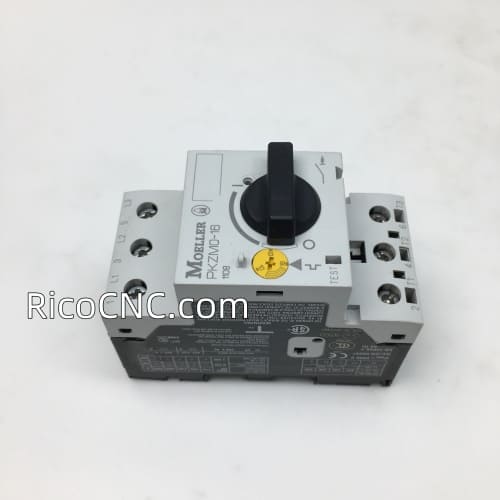

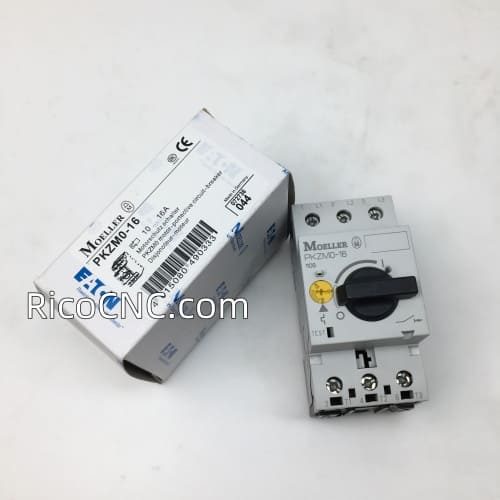

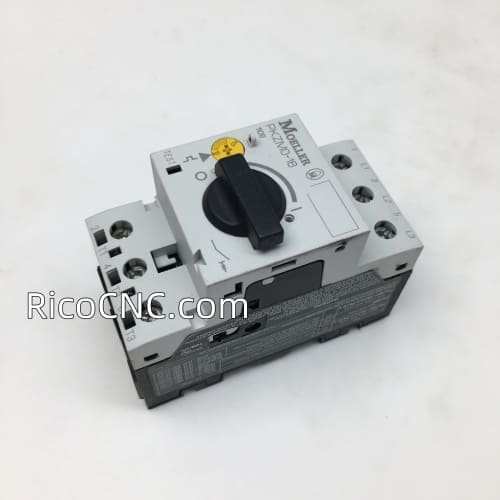

PKZM0-16 EATON Moeller Motor-protective circuit-breaker

PKZM0-16 EATON Moeller Motor-protective circuit-breaker, Motor-protective circuit-breaker, 3p, Ir=10-16A, screw connection. Eaton IEC motor control UL 489 Industrial Miniature Circuit Breakers - Supplementary Protector, 6A, 5-10X /n trip, Single-pole, Standard terminals

Specification of PKZM0-16 EATON Moeller Motor-protective circuit-breaker:

Product Name: Eaton XT IEC motor control

Catalog Number: PKZM0-16

EAN: 4015080469384

Amperage Rating: 16A

Type: Pushbutton

Frame size: 45 mm

Trip type: Class 10

Number of poles 3

Overload release current 10-16 A

Permanent rated current Iu - 16A

Thermomagnetic switch off with turn off button

Operating voltage 690 V

Operational power AC-3 400 V ? 7.5 kW

Protection rating IP20

Screw termination

DIN rail mount

IEC/EN 60947, CCC, VDE, UL and CSA approved

Also we supply:

PKZM0-20 EATON MOELLER Motor Protection Protection Circuit Breaker

PKZM0-32 EATON MOELLER Motor-protective circuit-breaker

PKZM0-25 Eaton MOELLER Motor-protective circuit-breaker

Welcome your inquiry
