ADN50X25-A-P-A FESTO Compact Cylinders

• ADN-50-25-A-P-A

• ADN50X25-A-P-A

• Compact cylinders

• short-stroke cylinders

• flat cylinders

• Double-acting

• ADN50X25-A-P-A FESTO Compact Cylinders

• Theoretical force at 6 bar, advancing: 1178 N

ADN50X25-A-P-A FESTO Compact Cylinders，Double-acting, Double-acting, Theoretical force at 6 bar, advancing: 1178 N.

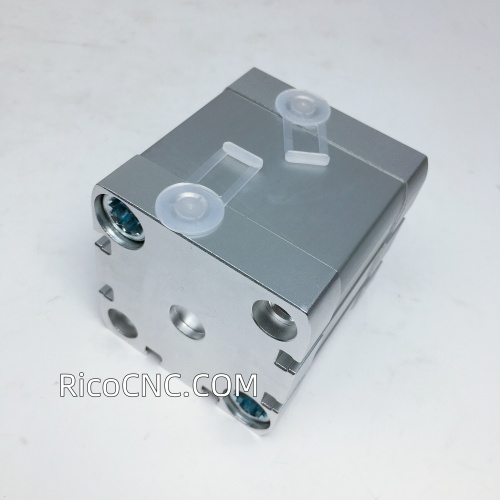

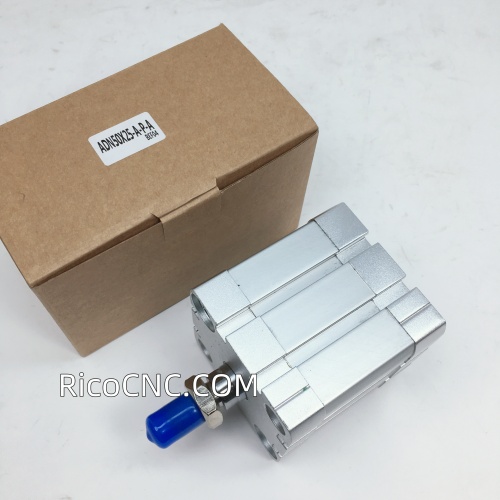

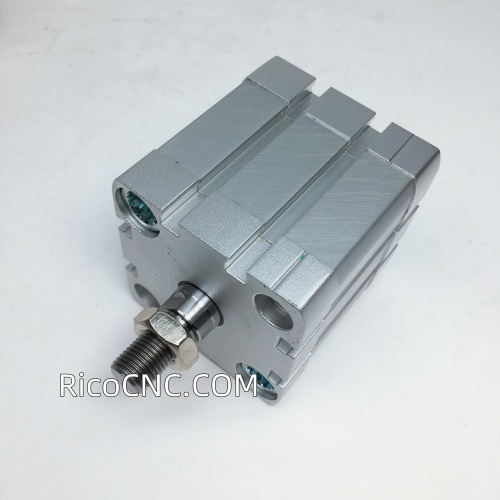

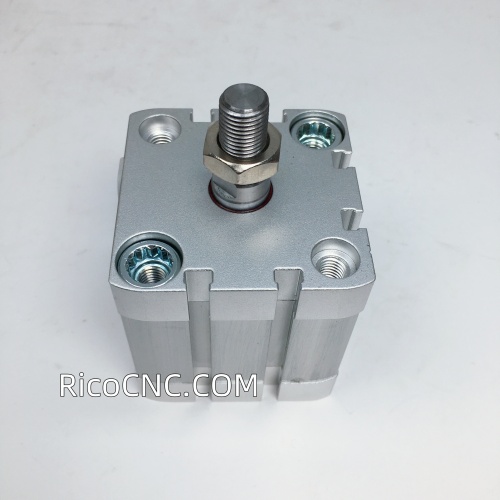

ADN50X25-A-P-A FESTO Compact Cylinders.jpg

Specification of ADN50X25-A-P-A FESTO Compact Cylinders:

Mode of operation: Double-acting

Piston diameter: 50 mm

Theoretical force at 6 bar, advancing: 1178 N

Stroke: 25 mm

Cushioning: Elastic cushioning rings/pads at both ends

Piston rod end: External thread

Position sensing: For proximity sensor

Symbol: 00991217

Variants: Piston rod at one end

Operating pressure: 0.06 MPa ... 1 MPa

Operating pressure: 0.6 bar ... 10 bar

Mode of operation: Double-acting

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Theoretical force at 6 bar, retracting: 1057 N

Theoretical force at 6 bar, advancing: 1178 N
