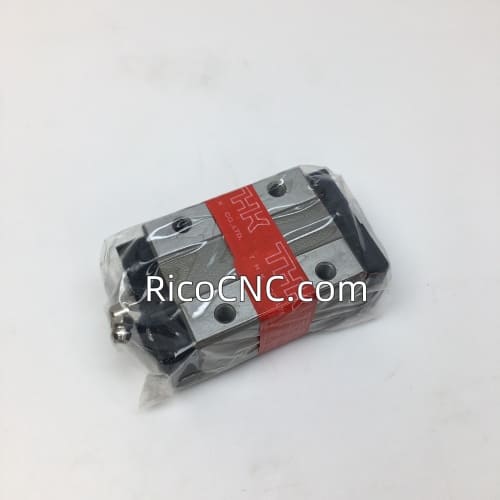

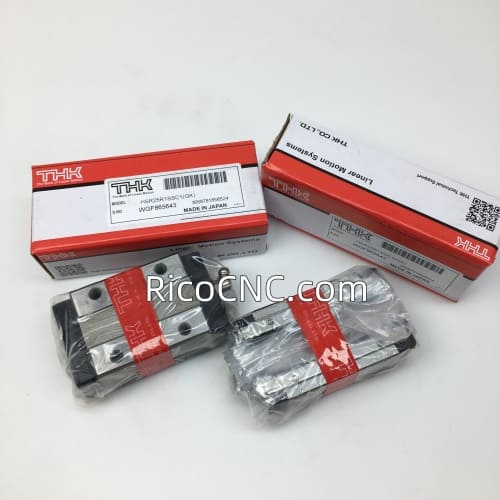

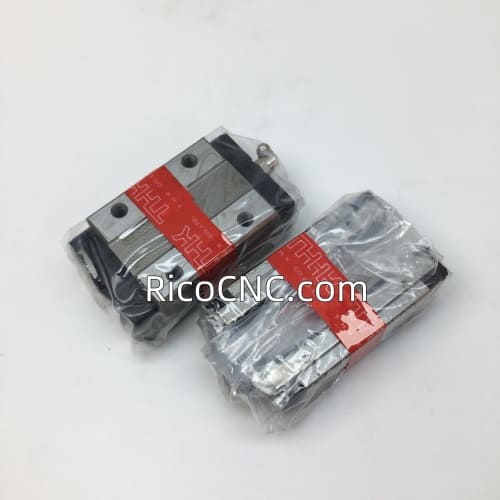

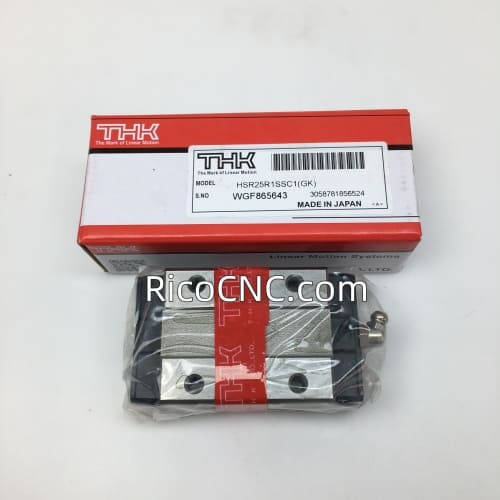

HSR25R1SSC1(GK) THK Linear Guide Block

HSR25R1SSC1(GK) THK Linear Guide Block，Manufactured by THK，HSR SERIES，Rating C 27.6 KN, Rating C0 is 36.4 KN,  HSR25R1SSC1(GK) THK Linear

Guide Block is with end seal, side seal and inner seal.

Description of THK Linear Guide Block (HSR25R1SSC1(GK)):

Manufactured by THK

Block Type: [Standard] R: Tall Height

Rail Type: Standard

Mounting Height M(mm): 40

Material: Carbon Steel

Radial Clearance: Light Preload

Accuracy Grade: Normal Grade (Best Leadtime)

Ball Arrangement: 4-Row Circular

Rolling Element: Ball

Basic Load Rating Dynamic Rating C(N): 27600

Basic Load Rating Static Rating Co(N): 36400

Allowable Static Moment MA(N⋅m): 334

Allowable Static Moment MB(N⋅m): 324

Allowable Static Moment MC(N⋅m): 366

Nominal Part Number: 25

Block Mounting Hole Pitch (Width Direction)(mm): 35
