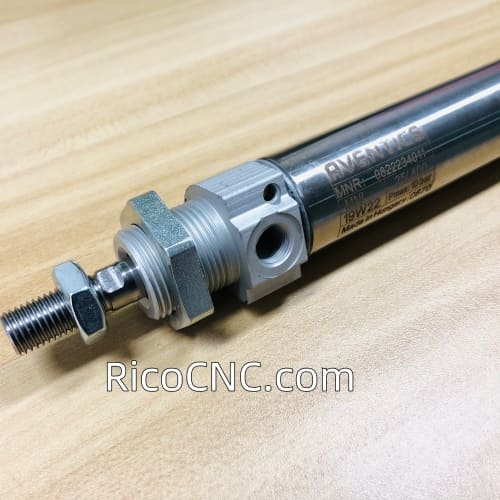

0822234011 EMERSON AVENTICS Pneumatic Piston Rod Cylinders Roundline Cylinder 25mm Bore, 400mm Stroke, MNI Series, Double Acting

EMERSON – AVENTICS Roundline Cylinder - 0822234011, Series MNI (MNI-DA-25-0400-D-01-01-1-00-000-00), 25mm Bore, 400mm Stroke, MNI Series, Double Acting.

Specification of 0822234011 EMERSON AVENTICS Pneumatic Piston Rod Cylinders Roundline Cylinder 25mm Bore, 400mm Stroke, MNI Series, Double Acting

Standards: ISO 6432

Piston: Ø25 mm

Stroke: 400 mm

Functional principle: Double-acting

Cushioning: Pneumatic adjustable cushioning

Magnetic piston: Piston without magnet

Environmental requirements: Industry standard, ATEX optional

Certificates:ATEX optional

Piston rod: single

Scraper: Standard industrial scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 260 N

Extracting piston force: 309 N

Working pressure min.: 1 bar

Working pressure max: 10 bar

PortsG: 1/8

Piston rod thread: M10x1,25

Cushioning length: 17.5 mm

Cushioning energy: 2.3 J
