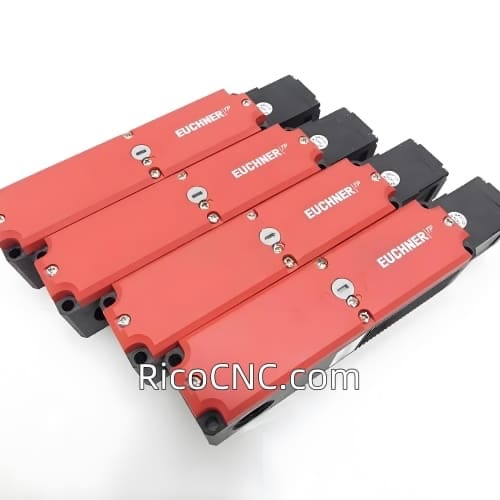

TP4-4121A024M Euchner Safety switch TP Series 084139

TP4-4121A024M Euchner Safety switch TP Series 084139, Safety switch TP, cable entry M20 x 1.5, contacts for the door position.

Specification of TP4-4121A024M Euchner Safety switch TP Series 084139:

3 x cable entry M20 x 1.5

Contacts for the door position

Auxiliary release

Open-circuit current principle

Fuse: max. 4 A gG

Power consumption: 8 W

Connection cross section: 0.34 ... 1.5 mm²

Rated insulation voltage Ui: 250 V

Rated impulse voltage Uimp: 2.5 kV

Switching voltage: min. at 10 mA 12 V

Switching current: min. at 24 V 1 mA
