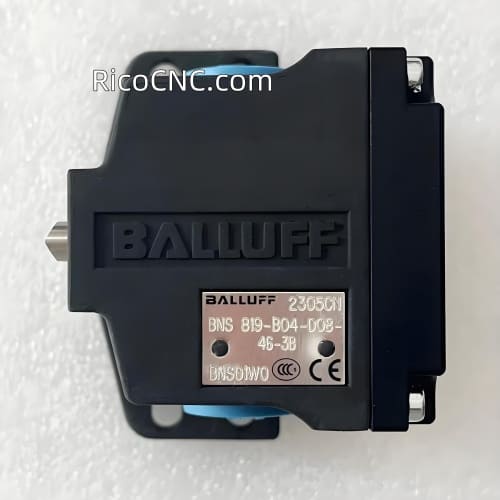

BNS819-B04-D08-46-3B BNS01W0 Balluff Mechanical multiple position limit switches

BNS819-B04-D08-46-3B BNS01W0 BNS01W0 Balluff Mechanical multiple position limit switches, Aluminium, Anodized, 4x Chisel positions, 1-4. Switch position: Mechanical.

Specification of BNS819-B04-D08-46-3B BNS01W0 BNS01W0 Balluff Mechanical multiple position limit switches

Housing material: Aluminium, Anodized

Number of switching positions: 4x Chisel

Version: Snap contact

Operating principle: 1-4. Switch position: Mechanical

Continuous current: 1-4. Switch position: 0.1 A

Rated operating voltage Ue: 1-4. Switch position: 30 V DC

Installation: Vertical

Approach direction: longitudinal, parallel to attachment surface

Approach speed: 1-4. Switch position: 20 m/min

Switch position spacing: 8 mm

Connection type: 1-4. Switch position: Screw terminal
