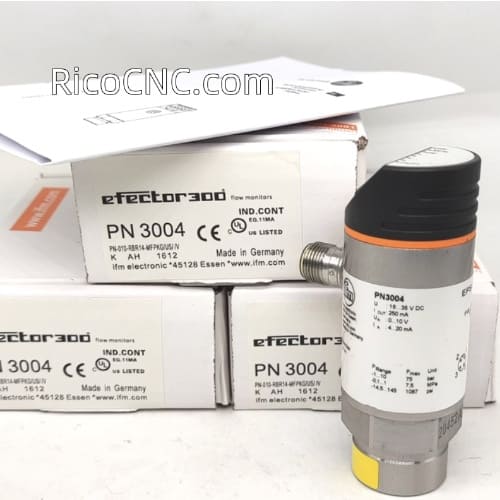

PN3004 IFM Pressure sensor with display

PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display, Combined pressure sensor, DC PNP, Function programmable, Connector,

4-digit alphanumeric display, Switching output, analogue output (0 bar = 4 mA / 0 V, 10 bar = 20 mA / 10 V), 4-digit alphanumeric display.

Feature of PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display:

With programmable switching output and analog output

Clearly visible numerical display

Country-specific pressure units selectable

With long-term stability thanks to high overload protection

High shock and vibration resistance

Specification of PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display

Specification of PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display

Brand: IFM EFECTOR

Manufacturer Part Number: PN3004

Special feature: Gold-plated contacts

Application: for industrial applications

Media:liquids and gases

Medium temperature[°C]: -25...80

Min. bursting pressure: 150 bar 2175 psi 15 MPa

Pressure rating: 75 bar 1087 psi 7.5 MPa

Type of pressure: relative pressure

Operating voltage[V]: 18...36 DC; (to SELV/PELV)

Current consumption[mA]: < 50

Min. insulation resistance[MΩ]: 100; (500 V DC)

Protection class: III

Reverse polarity protection: yes

Overvoltage protection: yes; (< 40 V)

Power-on delay time[s]: 0.3

Total number of outputs: 2

Output signal: switching signal; analogue signal; (configurable)

Electrical design: PNP

Number of digital outputs: 1

Output function: normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC[V]: 2

Permanent current rating of switching output DC[mA]: 250

Switching frequency DC[Hz]: < 170

Number of analogue outputs: 1
