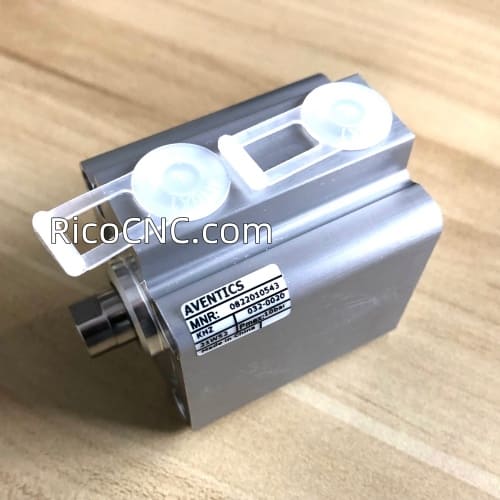

0822010543 AVENTICS Short-stroke cylinder Series KHZ

0822010543 AVENTICS Short-stroke cylinder Series KHZ, KHZ-DA-032-0020-O, Piston Ø32 mm

Stroke20 mm, Functional principleDouble-acting, AVENTICS Series KHZ is a non-standard short-stroke cylinder ideal for tight installation spaces and ensure easy, safe integration in machinery.

Specifications 0822010543 AVENTICS Short-stroke cylinder Series KHZ

Piston: Ø32 mm

Stroke: 20 mm

Functional principle: Double-acting

Cushioning: Elastic cushioning

Magnetic piston: Piston without magnet

Environmental requirements: Industry standard

Piston rod: single

Scraper: Standard industrial scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 435 N

Extracting piston force: 507 N

Working pressure min.: 0.6 bar

Working pressure max: 10 bar

Ports: G 1/8

Piston rod thread: M6

Impact energy: 0.16 J

Medium: Compressed air

Max. particle size: 50 µm

Oil content of compressed air min.: 0 mg/m³
