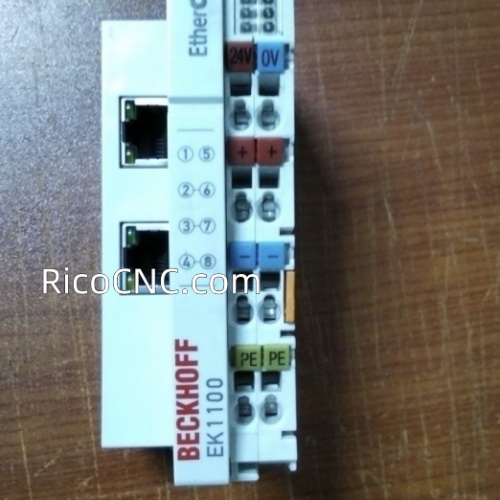

Beckhoff EK1100 Coupler EK1100 EtherCAT Terminals

Beckhoff EK1100 Coupler EK1100 EtherCAT Terminals is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. Beckhoff EK1100 Coupler EK1100 EtherCAT Terminals, 2 RJ45 SOCKETS, 100 MBITS/S, The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.

Features of EK1100 EtherCAT Coupler:

Connection technology: 2 x RJ45 socket

Connection lengths: up to 100 m

Number of EtherCAT Terminals in the overall system: up to 65,535

Specification of Beckhoff EK1100 Coupler EK1100 EtherCAT Terminals:

Task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks

Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded

Distance between stations: max. 100 m (100BASE-TX)

Number of EtherCAT Terminals: up to 65,534

Protocol: EtherCAT

Delay: approx. 1 µs

Data transfer rates: 100 Mbit/s

Bus interface: 2 x RJ45

Power supply: 24 V DC (-15%/+20%)

Current consumption from US: 70 mA + (∑ E-bus current/4)

Current consumption from UP: load

Current supply E-bus: 2000 mA

Power contacts: max. 24 V DC/max. 10 A

Electrical isolation: 500 V (power contact/supply voltage/Ethernet)

EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4

Relative humidity: 95%, no condensation

Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27

Protect. rating/installation pos.: IP20/variable
