TOP-N320H Nippon NOP Trochoid Pump N3H series

TOP-N320H Nippon NOP Trochoid Pump N3H series


• N3H

• NOP

• TOP-N320H

• Mid capacity pump

• NOP | TOP-N320H | Trochoid Pump

• Trochoid pump

• Nippon N3h Series High Performance Trochoid Pumps Top

• Mid capacity/High pressure pump

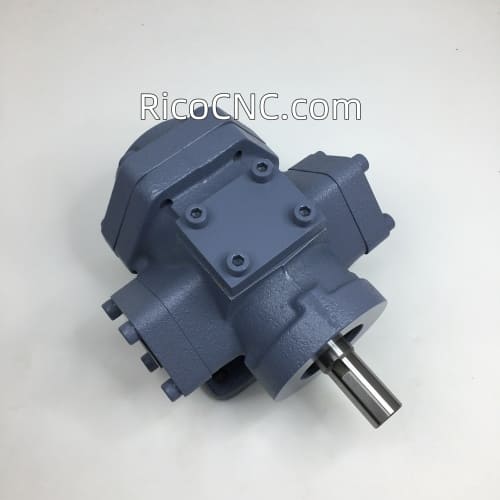

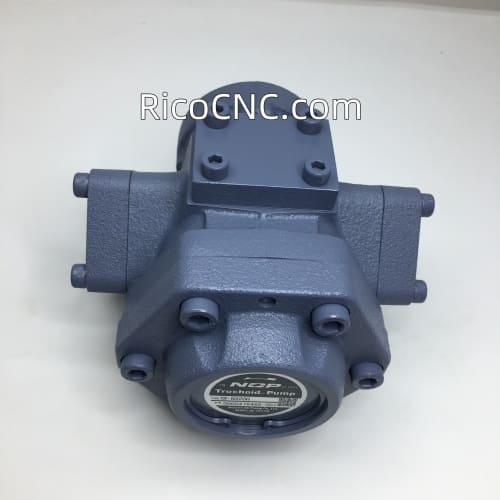

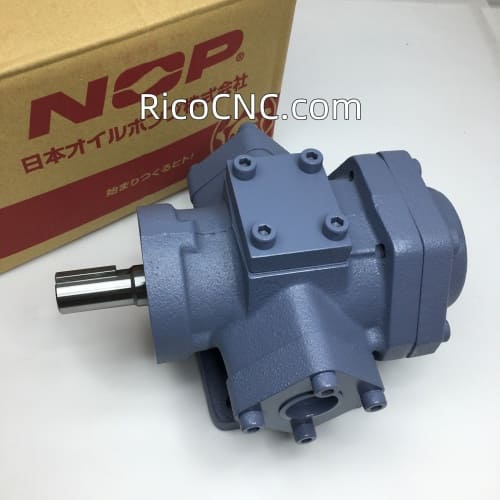

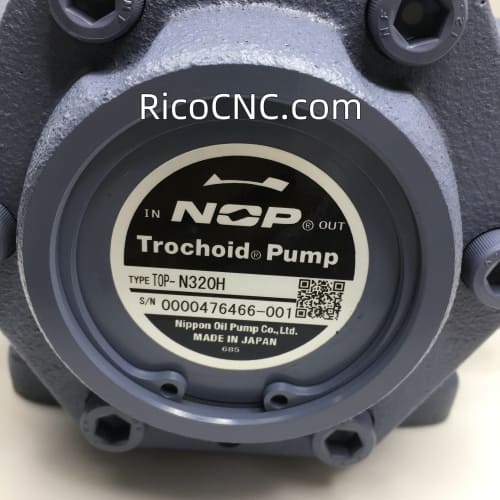

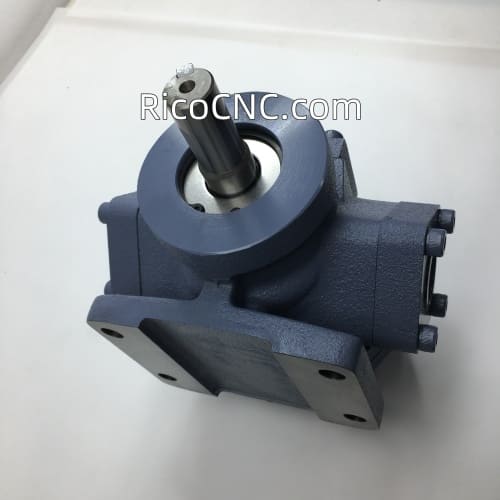

TOP-N320H Nippon NOP Trochoid Pump N3H series, Clockwise rotation as seen from the end of the shaft (standard rotation direction), Without relief valve.

26 cm³/rev, 39 ℓ/min, 4.0MPA, 1800 rotation speed.

Nippon N3h Series High Performance Trochoid Pumps Top.jpg

Features of TOP-N320H Nippon NOP Trochoid Pump N3H series:

Mid class capacity (26~52㎤/rev)

Mid/High pressure 2~4MPa

Nippon N3h Series High Performance Trochoid Pumps.jpg

Specification of TOP-N320H Nippon NOP Trochoid Pump N3H series:

Name: TOP-N320H Nippon NOP Trochoid Pump

Series: N3H series

Theoretical displacement (cm³/rev): 26

Theoretical discharge ℓ/min (US gal/min) 1500min: 39

Theoretical discharge ℓ/min (US gal/min) 1800min: 46.8

Max. discharge pressure MPa (psi):4.0

Max. rotation speed min-1: 1800
