0820055502 AVENTICS Solenoid Valve 5/2-directional Valve Series HF03-LG

0820055502 AVENTICS Solenoid Valve 5/2-directional Valve Series HF03-LG


• AVENTICS™ 5/2-directional valve, Series HF03-LG 0820055502

• HF03 - 5/2DS - 024DC

• AVENTICS

• BOSCH 0820055502

• Double Solenoid valve

• 5/2 valve

• HF03 SOL OP VAL 5/2 D.S. 24 DC

• Aventics Pneumatic Directional Valve

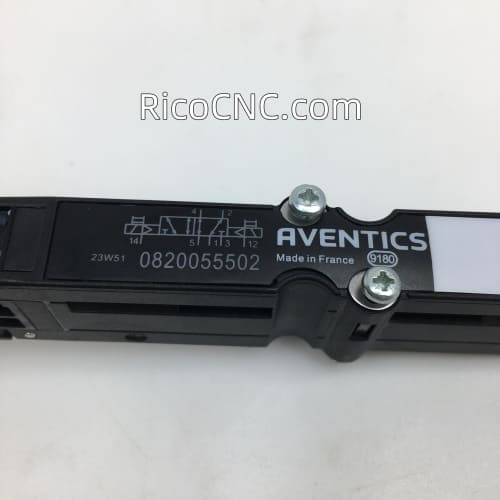

0820055502 AVENTICS Solenoid Valve.jpg

0820055502 Aventics Pneumatic Directional Valve HF03 - 5/2DS - 024DC, Double Solenoid valve, 850L/min.

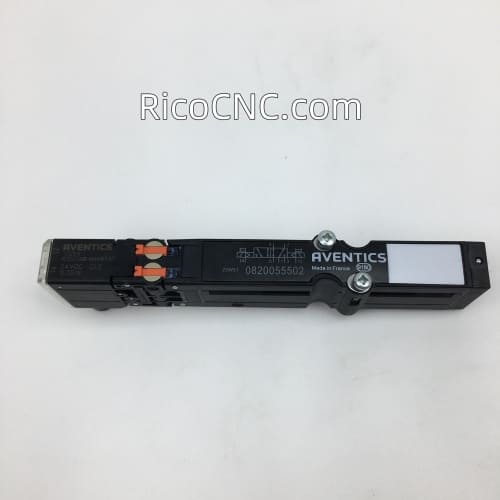

Aventics Pneumatic Directional Valve.jpg

Specification of 0820055502 AVENTICS Solenoid 5/2-directional Valve Series HF03-LG:

Manufacturer: Aventics

Manufacturer Part Number: 0820055502

Activation: Electrically

Switching principle5/2, double solenoid

Actuating control: Double Solenoid

Manual override: without detent

Pilot: External

Nominal flow Qn: 850 l/min

Min. working pressure: -0.9 bar

Max. working pressure: 10 bar

Operational↩voltage: 24 V DC

Voltage tolerance DC: -15% / +20%

Protection class with connection: IP65

Reverse polarity protection: Protected against polarity reversal

Sealing principle: 16 mm, Soft seal

Power consumption: DC0.35 W

Duty cycle: 100 %

Typ. switch-on time: 13 ms

Typ. switch-off time: 15 ms

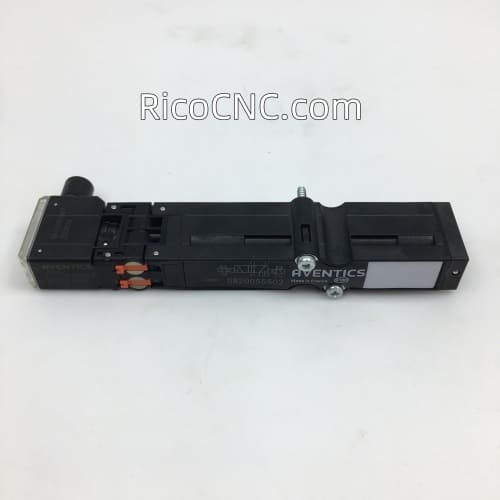

BOSCH 0820055502.jpg

Also we supply:

0820023505 AVENTICS SOLENOID VALVE 5/2-way valve, Series RA14

R901087088 Bosch Rexroth DIRECTIONAL SPOOL VALVE

R900052621 Bosch Rexroth Directional Poppet Valve

Welcome your inquiry.

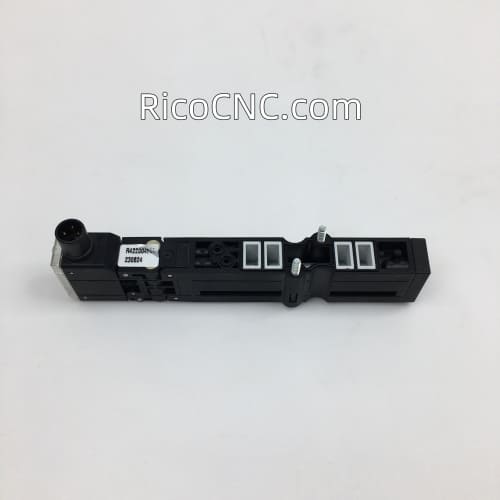

Double Solenoid valve.jpg
