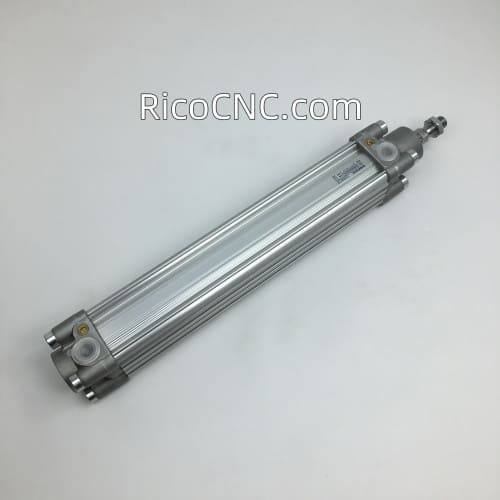

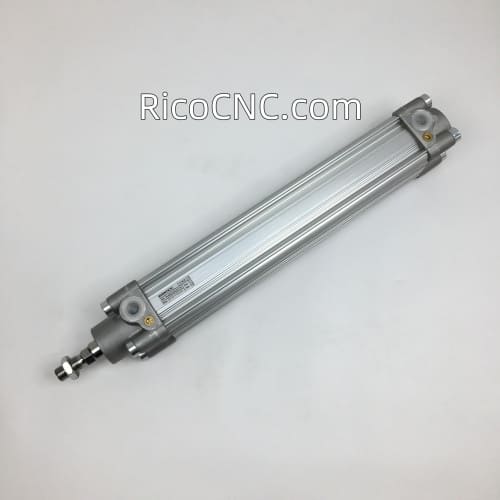

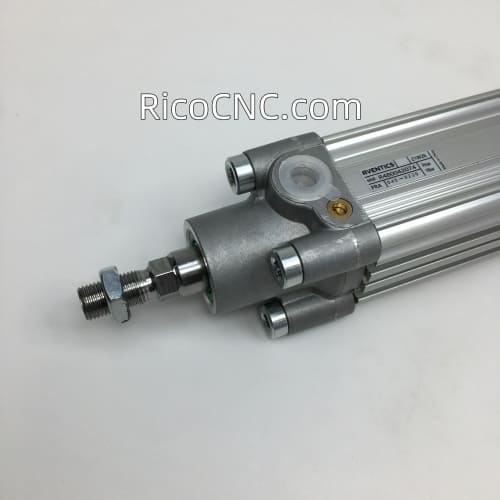

R480042074 AVENTICS Profile cylinder PRA-DA-050-0125-0322311100000000000000-B

R480042074 AVENTICS Profile cylinder PRA-DA-050-0125-0322311100000000000000-B, Piston Ø50 mm, Stroke 125 mm，Double-acting, Working pressure min.: 1.5 bar-10bar

Specification of R480042074 AVENTICS Profile cylinder PRA-DA-050-0125-0322311100000000000000-B

Manufacturer: Aventics

Material #: R480042074

Standards: ISO 15552

Piston: Ø50 mm

Stroke: 125 mm

Functional principle: Double-acting

Cushioning: Pneumatic adjustable cushioning

Magnetic piston: Piston with magnet

Environmental requirements: Industry standard, ATEX optional

Piston rod: through

Scraper: Standard Industry Scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 1035 N

Extracting piston force: 1035 N

Working pressure min.: 1.5 bar

Working pressure max: 10 bar

Ports: G1/4

Piston rod thread: M16x1,5

Cushioning length: 17 mm

Cushioning energy: 15 J

Stroke max.:1500 mm

Medium :Compressed air
