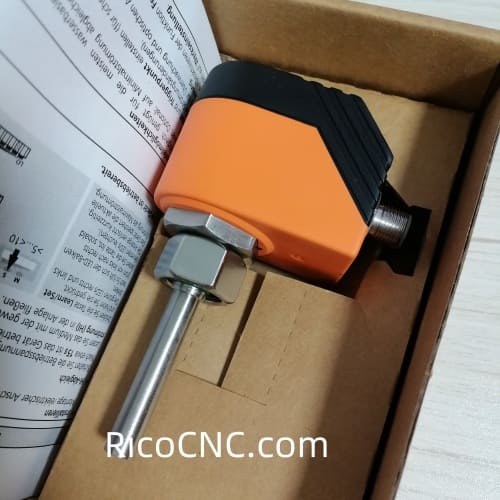

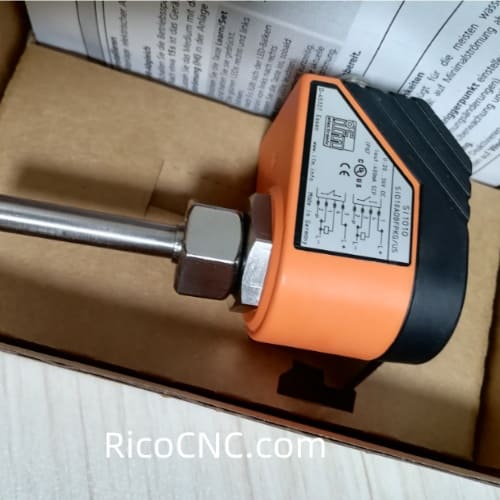

IFM SI1010 Flow monitor SID10ADBFPKG/US-100-IPF

IFM SI1010 Flow monitor SID10ADBFPKG/US-100-IPF, Flow switch for cycling applications, bar graph display, PNP output, mounting accessory required.

efector 300, SI1010, SID10ADBFPKG /US,1 digital outputs, threaded connection M18 x 1,5 Internal thread. 20...36 DC; (to SELV/PELV)

Specification of IFM SI1010 Flow monitor SID10ADBFPKG/US-100-IPF

Manufacturer: IFM

Number of inputs and outputs: Number of digital outputs: 1

Process connection: threaded connection M18 x 1,5 Internal thread

Media: Liquids; Gases

Medium temperature[°C]: -25...80

Pressure rating: 300 bar 30 MPa

Operating voltage[V]: 20...36 DC; (to SELV/PELV)

Current consumption[mA] < 80

Reverse polarity protection yes

Power-on delay time[s] 15; (optically indicated)

Material: PBT-GF20

Materials (wetted parts): stainless steel (1.4404 / 316L); O-ring: FPM 8 x 1,5 gr 80° Shore A

Process connection: threaded connection M18 x 1,5 Internal thread

Probe diameter[mm]: 8.2

Installation length EL[mm]: 45
