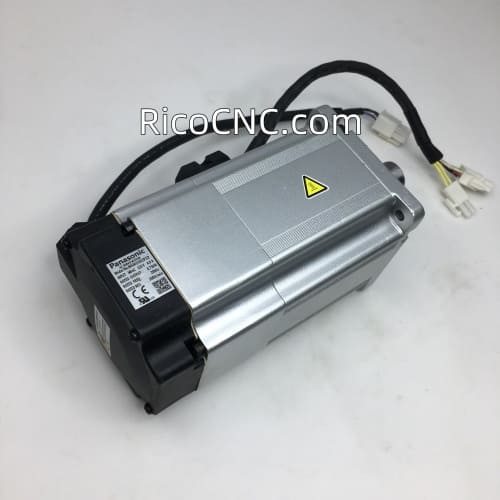

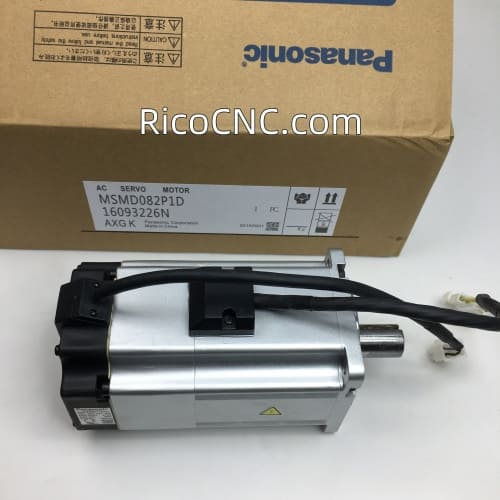

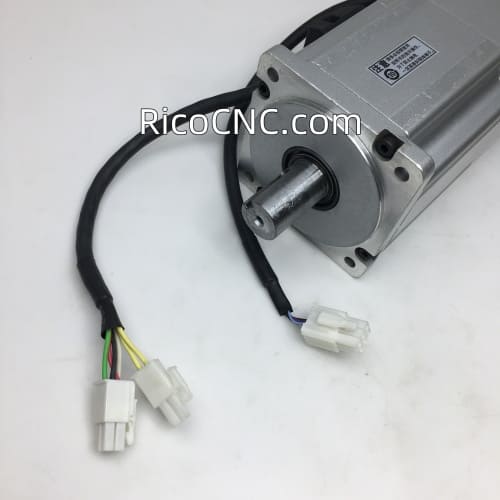

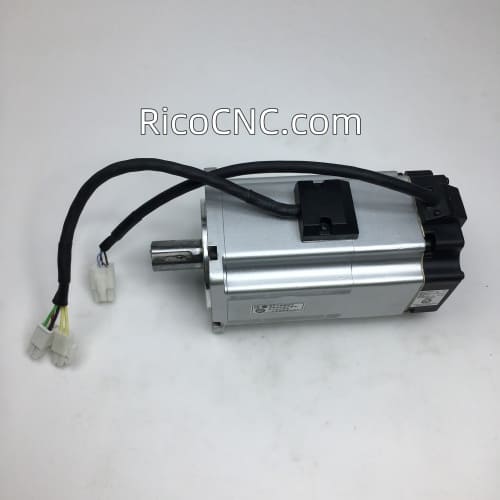

MSMD082P1D Panasonic AC Servo Motor

MSMD082P1D Panasonic AC Servo Motor，MINAS A4 MSMD series, 0.75KW, 120V, 4A, 200HZ, 3000rpm.

Specification of MSMD082P1D Panasonic AC Servo Motor:

Panasonic Servo Motor MINAS A4 MSMD:082P1

Input 3 AC120V 4A

RATED OUTPUT: 0.75KW

Rated FREQ: 200HZ

Rated Rev: 3000r/min

Frame symbol: Frame C

Power supply capacity: 1.3kVa

Rated torque（N.m):2.4

Momentary Max. peak torque (N . m): 7.1

Max. current (Ao-p): 17.0

Max. rotational speed (r/min): 4500

Without brake: 0.87

With brake: 0.97

Recommended moment of inertia ratio of the load and the rotor Note)3：20 times or less

Also we supply:

SGMPH-04DAA61D YASKAWA AC Rotary Servo Motors

HC-SF52K Mitsubishi AC Servo Motor

SGMJV-08A3A61 YASKAWA Sigma-5 rotary servo motors

Welcome your inquiry.
