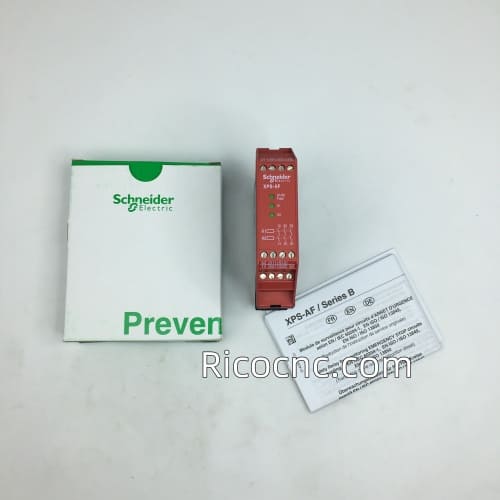

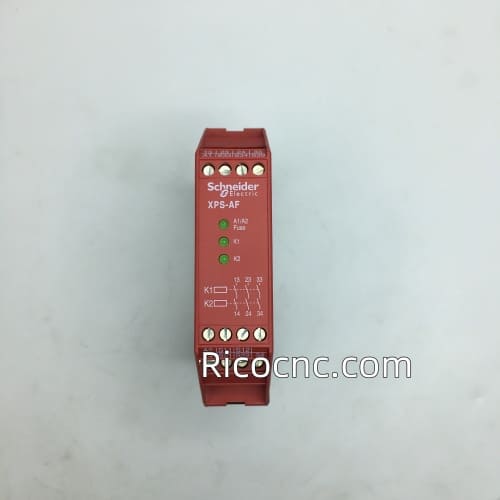

XPSAF5130 Schneider SAFETY RELAY

XPSAF5130 Schneider SAFETY RELAY, 24VAC/DC, 3NO, 2.5-Amp Preventa, CAPTIVE SCREW CLAMP TERMINALS.

Specification of XPSAF5130 Schneider SAFETY RELAY:

Range of product: Preventa Safety automation

Product or component type: Preventa safety module

Safety module name: XPSAF

Safety module application: For emergency stop and switch monitoring

Function of module: Emergency stop monitoring 1-channel wiring

                    Emergency stop monitoring 2-channel wiring

                    Monitoring of a movable guard

Safety level: Can reach PL e/category 4 conforming to EN/ISO 13849-1

              Can reach category 3 conforming to EN/IEC 62061

Synchronisation time between inputs: Unlimited

Supply frequency: 50/60 Hz

Maximum power consumption in VA: 5 VA AC

Input protection type: Internal, electronic

[Uc] control circuit voltage: 24 V

Maximum line resistance: 90 Ohm

Breaking capacity 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output

Output thermal current 6 A per relay for relay output

[Ith] conventional free air thermal current 18 A
