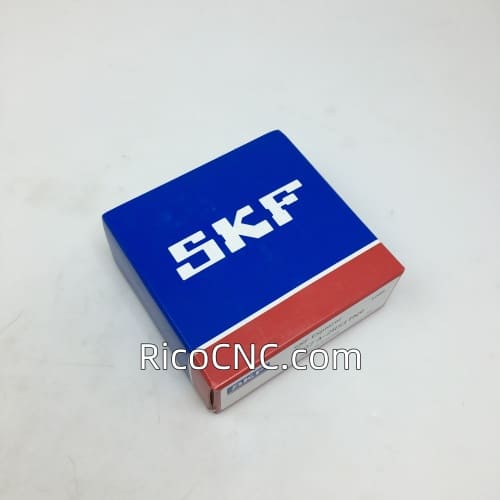

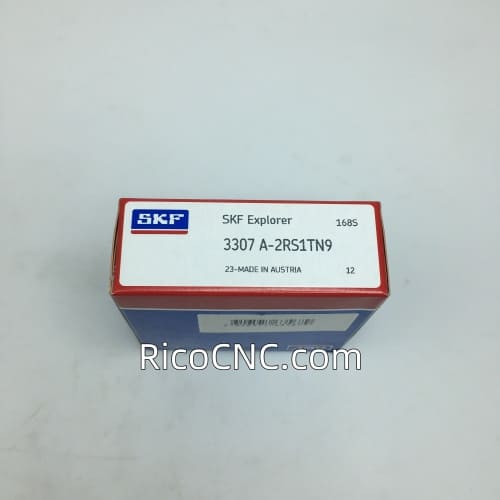

90661720000 SKF 3307A-2RS1TN9 Double row angular contact ball bearings

90661720000 SKF 3307A-2RS1TN9 Double row angular contact ball bearings, 35 mm ID, 80 mm OD 34.9 mm Race Width.

Feature of 90661720000 SKF 3307A-2RS1TN9 Double row angular contact ball bearings:

• High-speed capability

• Accommodate relatively high radial loads, high axial loads in both directions and tilting moments

• Suitable where a stiff bearing arrangement is required

• Require less axial space than equivalent pair of single row angular contact ball bearings

• Integral sealing prolongs bearing service life

Specification of 90661720000 SKF 3307A-2RS1TN9 Double row angular contact ball bearings:

Bore diameter: 35 mm

Outside diameter: 80 mm

Width: 34.9 mm

Contact angle: 30 °

Bearing part: Complete bearing

Contact type: Normal contact (two-point contact)

Number of rows: 2

Locating feature, bearing outer ring: Without

Ring type: One-piece inner and outer rings

Basic dynamic load rating: 54 kN

Basic static load rating: 38 kN

Limiting speed: 6000 r/min

SKF performance class: SKF Explorer
