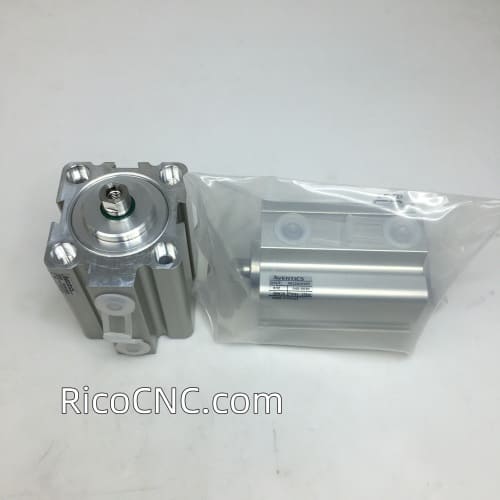

0822010655 AVENTICS Pneumatic Piston Rod Cylinder

• Pneumatic Piston Rod Cylinders

• Air cylinder

• 0822010655

• KHZ Series

• 40 mm Bore, 30 mm KHZ Series, Double Acting Acting

• Short Stroke Compact Cylinders

• Pneumatic Cylinders

• 10 bar, 1/8 in G

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010655 40 mm Bore, 30 mm KHZ Series, Double Acting Acting.

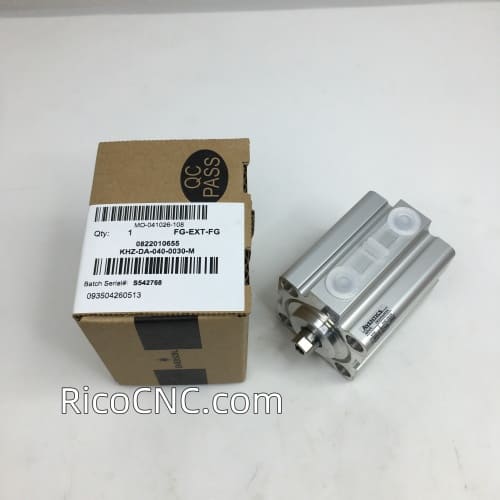

0822010655 AVENTICS Pneumatic Piston Rod Cylinder.jpg

Specification of EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010655：

Brand: EMERSON AVENTICS

Product Type: Pneumatic Piston Rod Cylinder

Series: KHZ

Model Number: 0822010655

Bore Size: 40mm

Action Type: Double Acting

Cushioning Type: Elastic

Body Material: Aluminium

Stroke Length: 30mm

Maximum Operating Pressure: 10 bar

Piston Rod Gender: Female

Minimum Operating Temperature: -25°C

Piston Rod Thread Size: 1/8 in G

Rod Type: Magnetic

Also we supply:

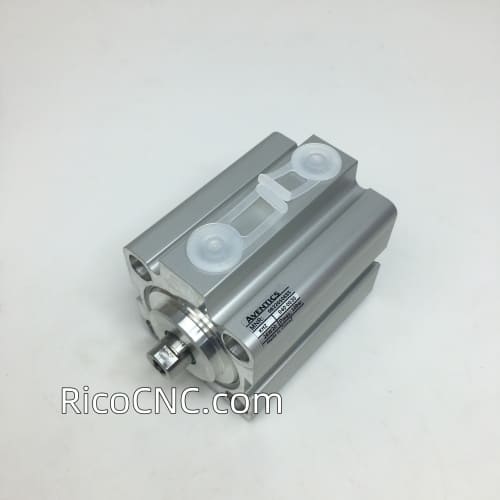

Pneumatic Piston Rod Cylinders.jpg

Welcome your inquiry.

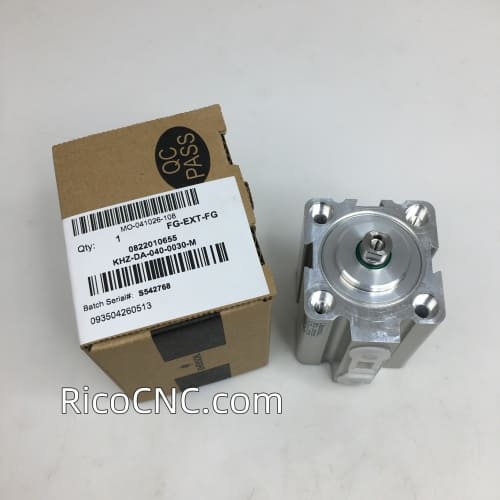

KHZ Series.jpg
