Types of Limit Switch

As a key role in industrial automation, limit switches play a vital role in mechanical motion control.

A limit switch detects and controls position based on a pre-set position. When a mechanical component moves to a set position, the detection element within the limit switch senses the change in position and converts the detected position signal into an electrical output, triggering the corresponding control action.


1. Types of Limit Switch

Limit switches can be categorized into various types based on their operating principles. Based on their operating principles, they can be divided into three types: mechanical limit switches, electronic limit switches, and electrical limit switches. Mechanical limit switches utilize a mechanical transmission mechanism, offering advantages such as a simple structure and ease of operation, but lower accuracy. Electronic limit switches utilize sensors such as photoelectric and Hall effect sensors for position detection, offering advantages such as high accuracy and stability, but are more expensive. Electrical limit switches utilize electrical signals for position detection and control, offering advantages such as remote control and a high degree of automation, but requiring an additional control system.

Depending on their mounting method, limit switches can be divided into direct-acting and roller-type. Direct-acting limit switches use a direct-acting transmission mechanism, offering advantages such as responsiveness and ease of operation, but they have a shorter lifespan. Roller-type limit switches use a roller-type transmission mechanism, offering advantages such as long lifespan and high precision, but they are more expensive.


2. How to choose the Limit Switch

When selecting a limit switch, it's important to consider the specific application scenario.

1. Consider factors such as the movement speed and impact load of mechanical components.

2. Select a brand and manufacturer with high reliability.

3. Consider factors such as the installation and operating environment. For example, a waterproof limit switch may be required for operation in a humid environment.

4. Select according to the control system's requirements. If the limit switch needs to be used in conjunction with a control system, the selection should be based on the control system's requirements. For example, a limit switch with a standard interface may be desirable for easy connection.

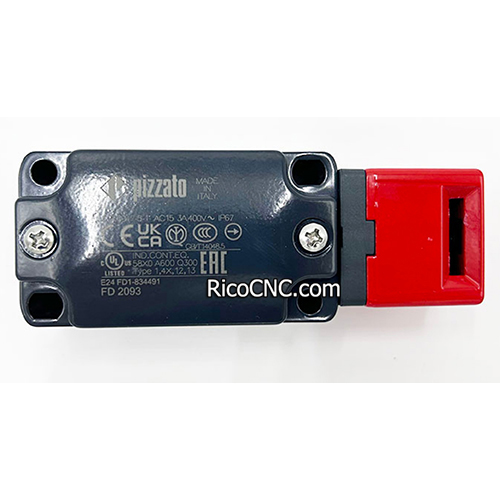

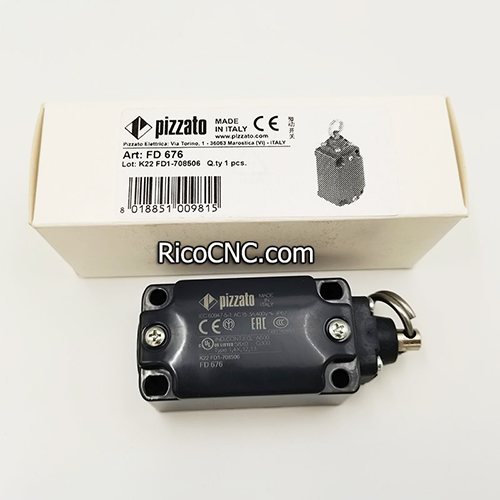

RicoCNC offers a range of limit switches, such as the VF B502 Pizzato Limit Switches, the FD 2093 Pizzato Safety Switches, and the FD676 Pizzato FD Series Position Switches. Please feel free to inquire.
