• EASUN 3ES210-08-NC
• EASUN 3ES2 Series 3/2 Way Solenoid Valve
• EASUN solenoid valve
• Directional Control Valve
• Solenoid Valve 2 Position 3 Way
• Electrical Pneumatic Solenoid Valve
• Solenoid valve pneumatic components' original spot
• Single head, G1/4”, Normal Closed

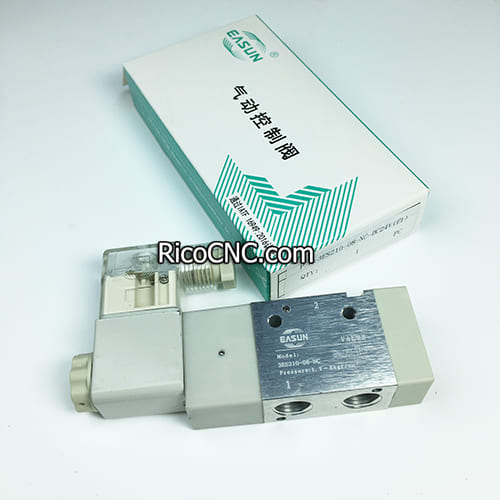

EASUN 3ES210-08-NCSolenoid Valve is manufactured by China, Single head, G1/4”, Normal Closed. The directional control valve is a single head normal open type 3ES2 series solenoid valve.
Features of EASUN 3ES210-08-NC solenoid valve:
Be applied to a wide range
Small reversal pressure
Reversal speed is quick
Long using life
Single-head,adopting piston inner pressure return, high dependability
Specification of EASUN 3ES210-08-NCSolenoid Valve
Fluids: The constringent after filtered
Operation: Inside Pilot Type
Port Thread: Supply/ Export/ Exhaust=G1/4"
Operating Temperature: -5~60℃
Efficient Sectional Area: 16mm (CV=0.89)
Lubrication: Not Required
Operating Pressure: 0.15~0.8MPa
Max Pressure: 1.2MPa
Power Consumption: AC:2.5VA DC:1W
Protection Grade: IP65(DIN40050)
Connection: Terminal Type
Max Frequency: 5 Times Per Second
Coil Insulation: Class F
Allowable Voltage: -15%~+10%
Min Response Time: 0.05 Seconds
Life: 25 Million
Also, we supply:
3750010300 Aventics Pneumatic Regulator
R412004418 AVENTICS Pneumatic Pressure Gauge
R422103561 AVENTICS Pneumatic Valve
Welcome your inquiry.
