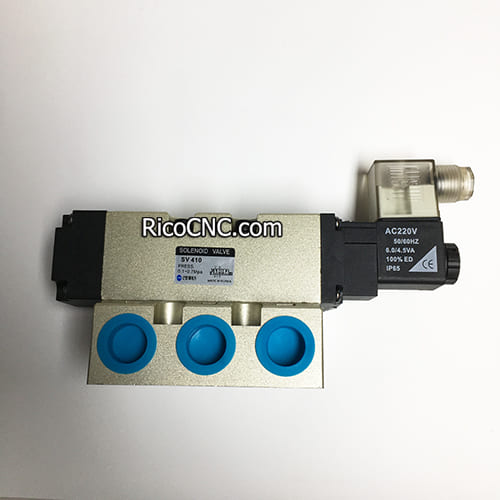

SV410 SYM Solenoid Valve 5-port SV Series Single Solenoid

SYM SV410 Solenoid Valve is made in Korea, Non-locking push type 5-port Solenoid Valve / Pilot Type, Elastic Seal, Air or Inert Gases, 0.15-0.9 pressure range, response time: 40ms, or less 60ms.Power consumption DC: 1.8W, Application: petroleum, metallurgy, chemical industry, paper industry, urban heating supply systems and so on.

Feature of SYM SV410 Solenoid Valve:

Compact size and large flow capacity

Effective area 80 mm2 (Cv4.44)

Low power consumption / 1.8W (DC)

Various electrical entries

Specification of SYM SV410 Solenoid Valve:

MODEL: SV410

Fluid: Air or Inert Gases

Pressure range (kgf/cm2): 0.15~0.9 (1.5~9.2)

Effective area (mm2 (Cv)): 80 (4.44)

Ambient and media temp.: Max. 50°C

Response time (5kgf/cm2): 40 ms or less 60 ms or less

Max. Cycles/Second: 5 C/S

Lubrication: Not required

Manual override operation: Non-locking push type

Shock/Vibration resistance: 30G / 5G (8.3~2,000 Hz)

Protective structure: Dust-proof

Coil rated voltage: AC 50 / 60 Hz 110V

Allowable voltage tolerance: -15%~+10% of rated voltage

Coil insulation: Class B or equivalent (130°C)

Power consumption DC: 1.8W

Weight (kg): 0.83

Surge suppressor: AC, DC: Varistor

Indicator lamp: LED
