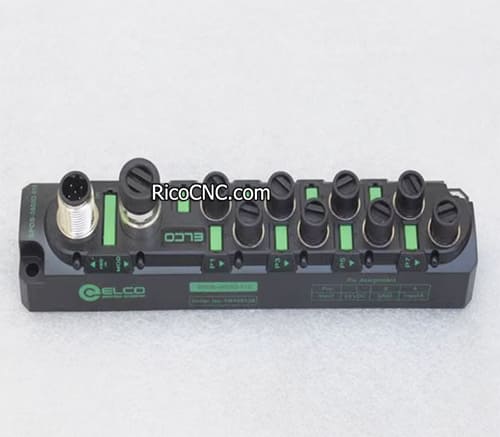

ELCO SPDB-0800D-013 0800D I/O systems Compact modules Digital Extension Module Spider 67

ELCO SPDB-0800D-013 0800D I/O systems Compact modules Digital Extension Module Spider 67 8DI, NPN, 8xM8, 2xM12 B-code.

Feature of ELCO SPDB-0800D-013:

Direct connection of sensor and actuator

Up to 8 l/0 signals, configurated by user

Short circuit and overload protection

Protection class IP67

Male in + Female out, M12 B-code

Supplied by extended interface

4xM12 or 8xM8 or open cable

Specification of ELCO SPDB-0800D-013:

Mounting type: Screw mounting

Connection I/O slots: 8 x M8, socket, 3-pin

Communication interface: Spider67 Classic

Operating voltage: 18 ... 30 V DC

Configurable inputs/outputs: No

Digital inputs: 8 x NPN

Fast Start UP: No

Housing material: Plastic (PC/ABS)

Protection class: IP67

Certificates: CE, RoHS, REACH

Connection (COM 1): M12, plug, 5-pin, B-coded

Connection (COM 2): M12, socket, 5-pin, B-coded

Connection (power supply IN): Integrated in COM 1

Connection (power supply OUT): Integrated in COM 2
