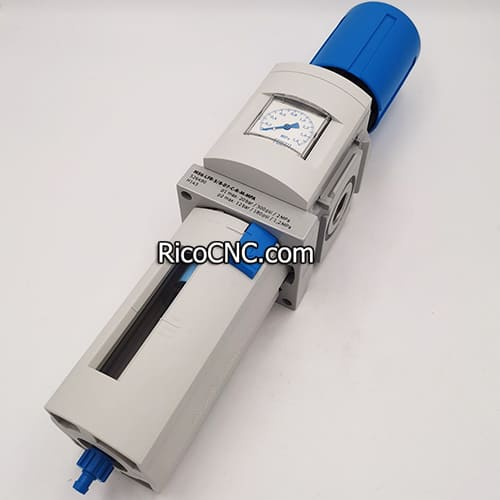

FESTO 526490 MS6-LFR-1/2-D6-C-R-V-AD11-AS Filter regulator

FESTO 526490 MS6-LFR-1/2-D6-C-R-V-AD11-AS Filter regulator, MS series, Compressed air preparation, Compressed air preparation, 0.8 bar ... 20 bar, Max. pressure hysteresis: 0.25 bar, Standard nominal flow rate: 2000 l/min ... 7200 l/min.

Description of FESTO Filter regulator MS6-LFR (526490)

Reference: 526490

Type code: MS6-LFR

Brand: Festo

Size: 6

Series: MS

Actuator lock:Rotary knob with detent Rotary knob with integrated lock can be closed with accessories

Mounting position: Vertical +/- 5°

Grade of filtration: 5 µm ... 40 µm

Condensate drain: Fully automatic Manually rotating Semi-automatic

Design: Filter regulator with pressure gauge Filter regulator without pressure gauge

Controller function: Outlet pressure constant With secondary exhausting With return flow function

Bowl guard: Plastic bowl guard Integrated as metal bowl guard

Pressure gauge: G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge

Operating pressure: 0.8 bar ... 20 bar

Pressure regulation range: 0.3 bar ... 16 bar

Max. pressure hysteresis: 0.25 bar

Standard nominal flow rate: 2000 l/min ... 7200 l/min

ATEX category gas: II 2G

Type of ignition protection for gas: Ex h IIC T6 Gb X

ATEX category for dust: II 2D

Type of (ignition) protection for dust: Ex h IIIC T60°C Db X

Explosion prevention and protection: Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)

Operating medium: Compressed air as per ISO 8573-1:2010 [-:4:-] Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas

CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)

Corrosion resistance class (CRC): 2 - Moderate corrosion stress

Type of mounting: Front panel mounting Line installation With accessories Optionally:

Compressed air filter material: PE

Housing material: Die-cast aluminum
