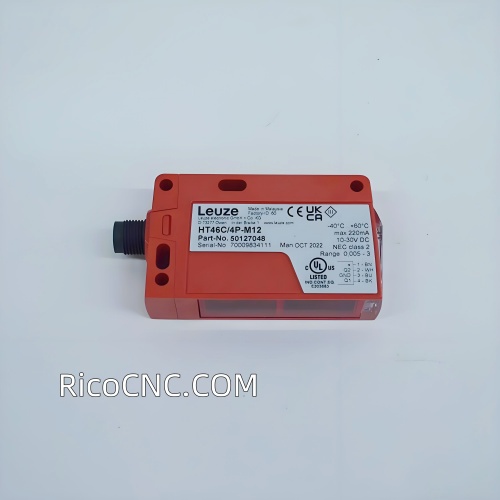

Leuze HT46C/4P-M12 Diffuse sensor with background suppression Part no.: 50127048

Leuze HT46C/4P-M12 Diffuse sensor with background suppression Part no.: 50127048, Photoelectric, Background suppression, 3m, Red LED, PNP, M12.

Feature of Leuze HT46C/4P-M12 Diffuse sensor with background suppression Part no.: 50127048

Scanner with adjustable background suppression in red light version

Reliable detection of objects with differentsurface structures

Large adjustment range and minimal zerodistance for optimum adaptation to the application

Highly visible status displays

Exact switching point adjustment throughmechanical adjusting spindle

Activation input for sensor test

Various switching output functions for uni-versal connection to existing controlenvironment

A2L S active ambient light suppression foravoiding mutual interference

Robust plastic housing in degrees of protection IP67 and IP69K

Specification of Leuze HT46C/4P-M12 Diffuse sensor with background suppression Part no.: 50127048:

Series: 46C

Operating principle: Diffuse reflection principle with background suppression

Black-white error: < 10% up to 1200 mm

Operating range: Guaranteed operating range

Operating range, white 90%: 0.005 ... 3 m

Operating range, gray 18%: 0.02 ... 2 m

Operating range, black 6%: 0.05 ... 1.5 m

Operating range limit: 0.005 ... 3 m

Operating range limit: Typical operating range

Adjustment range: 120 ... 3,000 mm

Beam path: Focused

Light source: LED, Red

Wavelength: 630 nm

LED group: Exempt group (in acc. with EN 62471)

Type of light spot geometry: Rectangular

Focus: Fixed
