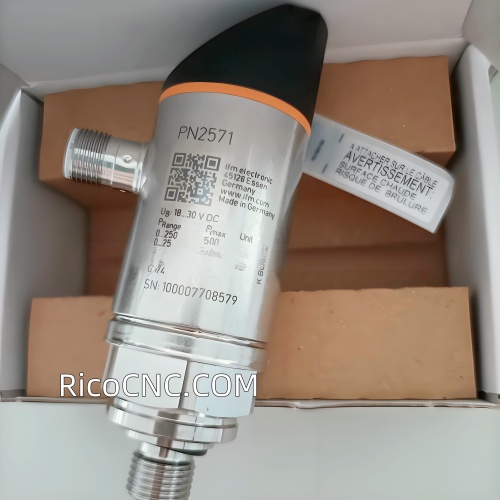

PN2571 IFM Pressure sensor with display PN-250-SEG14-MFRKG/US/ /V

PN2571 IFM Pressure sensor with display PN-250-SEG14-MFRKG/US/ /V, ifm electronic Pressure Sensor, 0bar Min, 250bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading

Feature of PN2571 IFM Pressure sensor with display PN-250-SEG14-MFRKG/US/ /V

Two switching outputs, one of them programmable as IO-Link and one as analogue output

Red/green display for clear identification of the acceptable range

The process connection can be rotated for optimum alignment

With long-term stability thanks to high overload protection

Robust design for use in harsh industrial environments

Specification of PN2571 IFM Pressure sensor with display PN-250-SEG14-MFRKG/US/ /V

Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Special feature: Gold-plated contacts

Measuring element: metallic thin film cell

Application: for industrial applications

Media: liquids and gases

Operating voltage[V]: 18...30 DC; (to SELV/PELV)

Current consumption[mA]: < 35

Min. insulation resistance[MΩ]: 100; (500 V DC)

Protection class: III

Reverse polarity protection: yes

Power-on delay time[s]: 0.3
