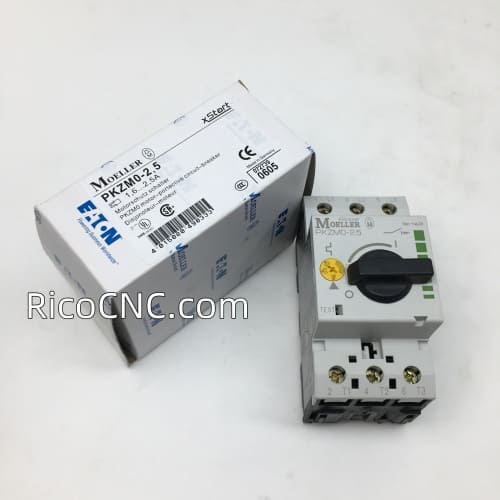

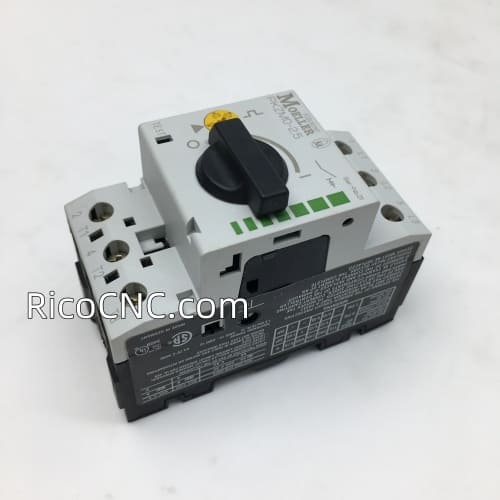

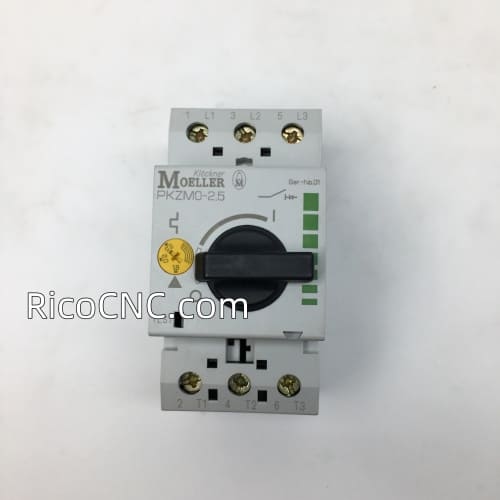

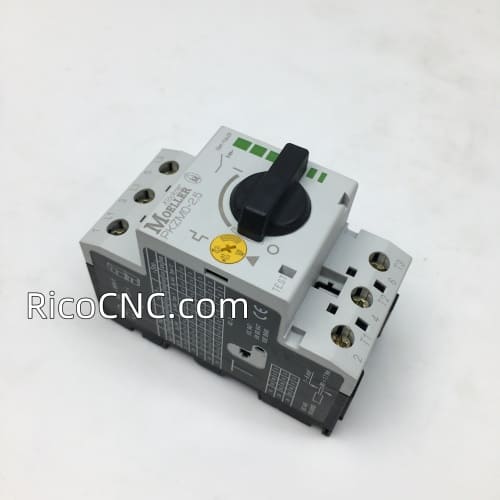

PKZM0-2.5 Eaton Moeller Motor-protective circuit-breaker

Moeller - PKZM0-2.5 MOTOR PROTECTION CIRCUIT BREAKER 1.6-2.5A 3 POLE, ROTARY HANDLE, SCREW CONNECTION, Eaton IEC motor control UL 1077 Industrial Miniature Circuit Breaker - Supplementary Protector, 2A, 10-20X /n trip, Single-pole, Standard terminals.

The Eaton PKZM0-2,5 XTPR2P5BC1 is a 3 phase thermal-magnetic motor protective device incorporating adjustable bimetal trips for motor overload protections and magnetic trips to de-energize the motor circuit in case of a short circuit.

Specification of PKZM0-2.5 Eaton Moeller Motor-protective circuit-breaker:

Product Name: Eaton XT IEC motor control

Catalog Number: PKZM0-2.5

EAN: 4015080727361

Amperage Rating: 2.50A

Type: Pushbutton

Frame size: 45 mm

Trip type: Class 10
