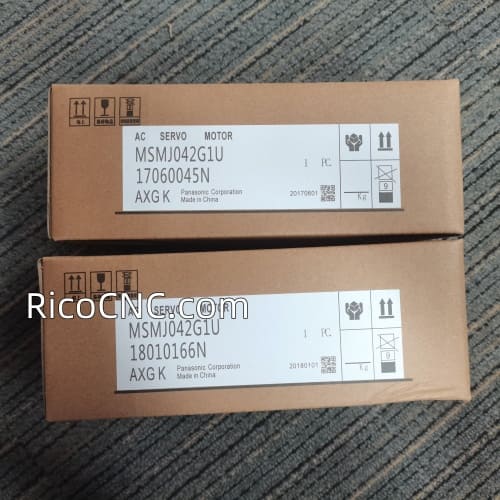

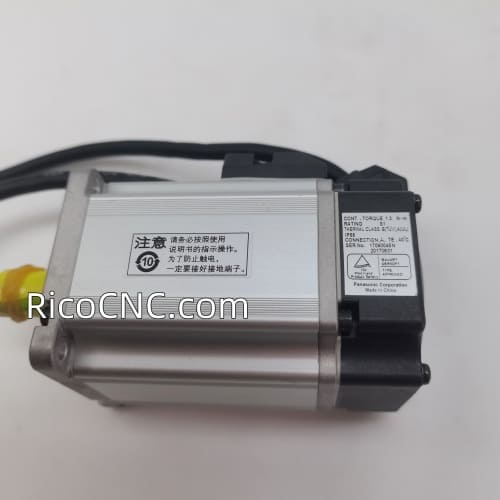

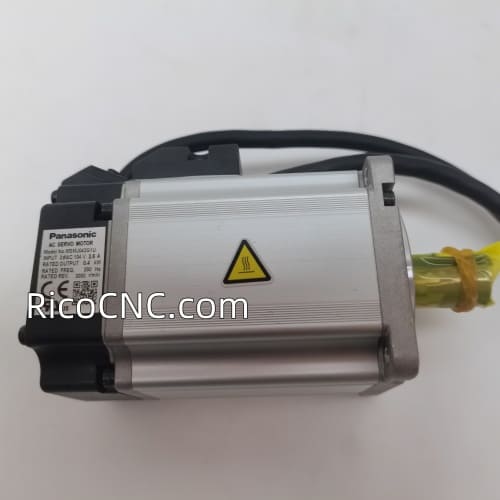

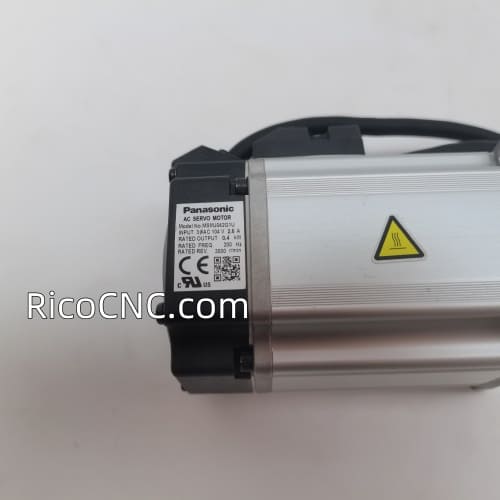

MSMJ042G1U Panasonic AC servo motors MINAS A5 Family Servo Motor

MSMJ042G1U Panasonic AC servo motors MINAS A5 Family Servo Motor, MSMJ Series, Low inertia, 400W, AC 200C, 1.3N.m torque, key-way, center tap with oil seal. 3000-5000rpm.

Specification of MSMJ042G1U Panasonic AC servo motors MINAS A5 Family Servo Motor

Manufacturer : Panasonic

Product No : MSMJ042G1U

Product type : MINAS A5 Family Servo Motor

Series : MSMJ Series

Type : Low inertia

Protection class : IP65

Flange sq. dimension : 60 mm sq.

Motor lead-out configuration : Lead wire

Motor encoder connector : Lead wire

Power supply capacity (kVA) : 0.9

Voltage specifications : 200 V

Rated output : 400 W

Rated current (A (rms)) : 2.6

Oil seal : with

Shaft : Key-way, center tap

Rated torque (N · m) : 1.3

Momentary Max. peak torque (N · m) : 3.8

Max. current (A (o-p)) : 11.0

Regenerative brake frequency (times/min) : Without option :No limit

With option :No limit

Option (External regenerative resistor) : Part No. : DV0P4283

Rated rotational speed (r/min) : 3000

Rated rotational Max. speed (r/min) : 5000

Moment of inertia of rotor : ( x10-4 kg · m²) 0.26

Recommended moment of inertia ratio of the load and the rotor : 30 times or less
